220V Powered Music Tesla Coil Driver Board for 20cm Plasma Arc Demonstrations

This solid-state Tesla coil (SSTC) driver board provides a complete, self-contained system for generating dramatic musical plasma displays without the complexity of traditional high-voltage setups. Designed for educational demonstrations, visual effects, and science exhibits, it operates directly from standard 220V AC mains power and requires no separate ground cable installation. The compact 100x115x205mm driver board incorporates arc extinguishing isolation technology and coaxial signal transmission, delivering arcs up to 20cm in length that can be precisely synchronised to audio input via a standard 3.5mm port. With an average power rating of 250W and product capacity of 200VA, it offers substantial visual impact while maintaining controlled operation through its dedicated controller unit.

Technical Specifications and Operation

The driver board combines practical power handling with user-accessible controls for reliable plasma generation. Input voltage accepts AC 110-240V, with a working current range of 0.1A-2A, providing flexibility for different regional power standards while focusing on 220V direct operation as its primary configuration.

Power Supply and Electrical Design

Unlike many Tesla coil systems requiring multiple specialised power supplies, this unit connects directly to standard mains sockets via its included power cable. The 220V direct power supply eliminates the need for external transformers or ground wire installations, simplifying setup considerably. The board's design incorporates safety isolation between the high-voltage arc generation circuits and the control electronics, with the arc extinguishing device providing additional operational security during use.

Arc Generation and Audio Synchronisation

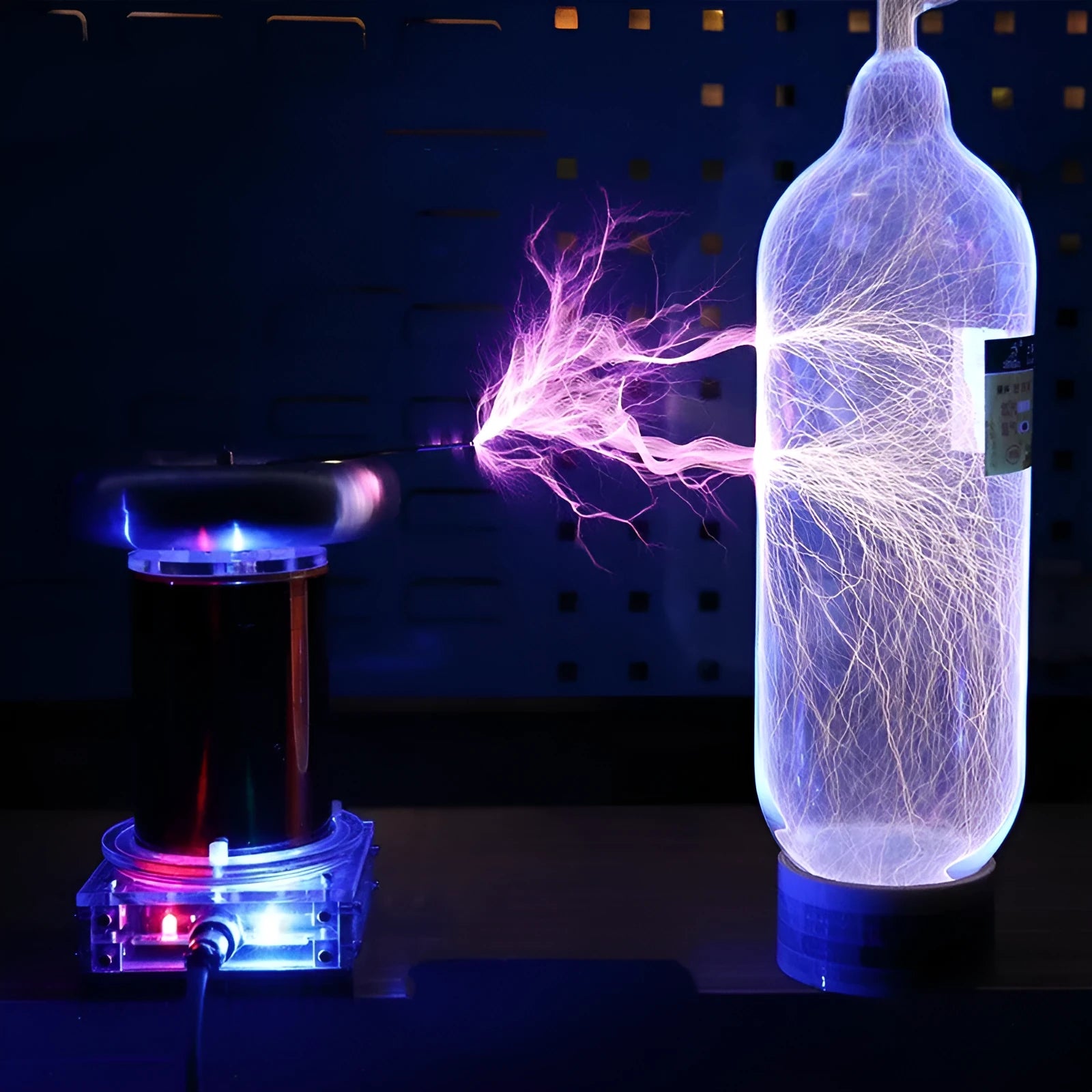

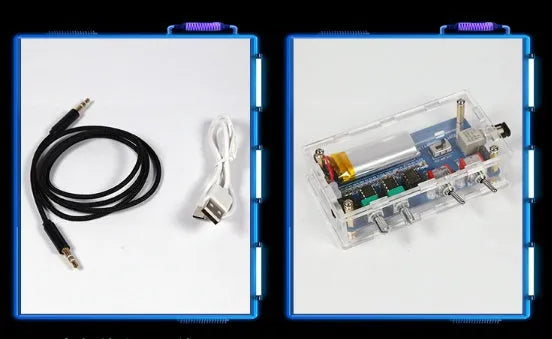

The system produces plasma arcs with a maximum discharge distance of 20cm, adjustable via the controller's potentiometer. Arc patterns directly respond to audio signals fed through the 3.5mm input port, creating visual representations of music waveforms and frequencies. This audio-reactive capability makes it particularly suitable for musical performances, science museum exhibits, and educational demonstrations where visualising sound properties enhances understanding and engagement.

Setup and Practical Application

Designed for users with basic technical understanding, the system includes all necessary components for immediate operation while following specific setup procedures ensures optimal performance and safety.

Initial Assembly and Connection

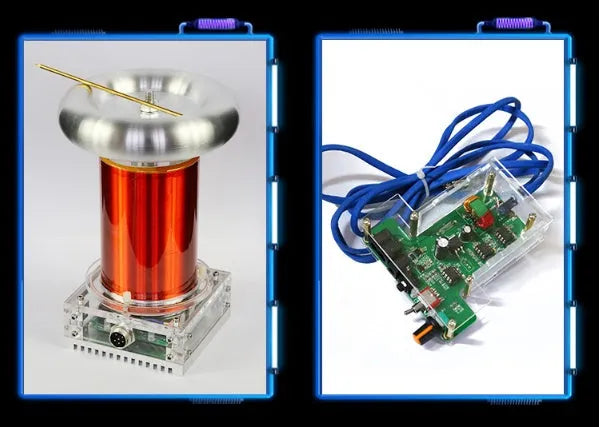

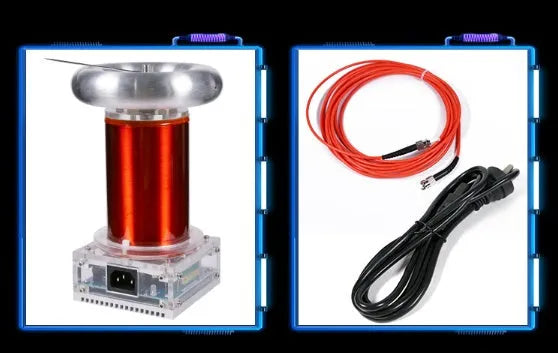

For the arc extinguishing SSTC model, begin by placing the provided thimble on the pressure equalisation ring at the coil's top, ensuring the tip extends approximately 2-3cm beyond the ring. Connect the optical fibre between the product body and controller, noting the alignment bump on the fibre head—rotate gently rather than forcing connection. Finally, connect the 220V power cable to the host unit before plugging into a mains socket, ensuring all connections are secure before powering on.

Operational Procedure and Safety

Before energising the system, verify the controller's potentiometer is at the zero position and the arc brightness adjustment is at minimum. Turn the controller switch on, then gradually increase the potentiometer to initiate arcing. During operation, maintain a minimum safety distance of 0.5m from the coil and voltage equalisation ring, with 1m recommended for extended viewing. Never touch the coil or ring while energised, and limit continuous use to 3-5 minute intervals, with music playback recommended for 2-3 minutes per session to prevent overheating.

Design and Practical Considerations

The driver board's compact dimensions and integrated design prioritise both portability and structural integrity for various demonstration environments.

Physical Construction and Portability

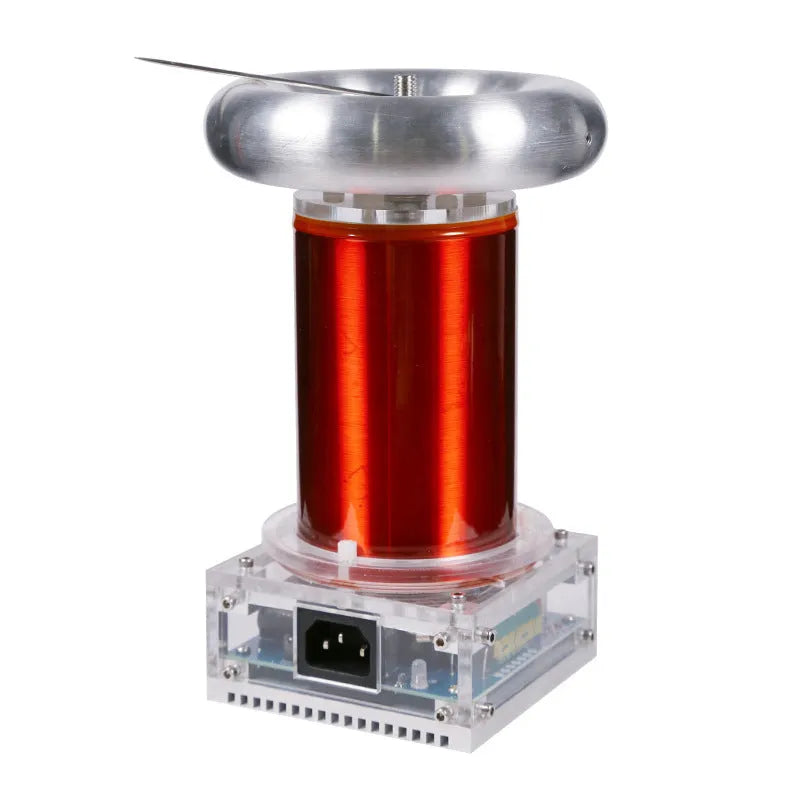

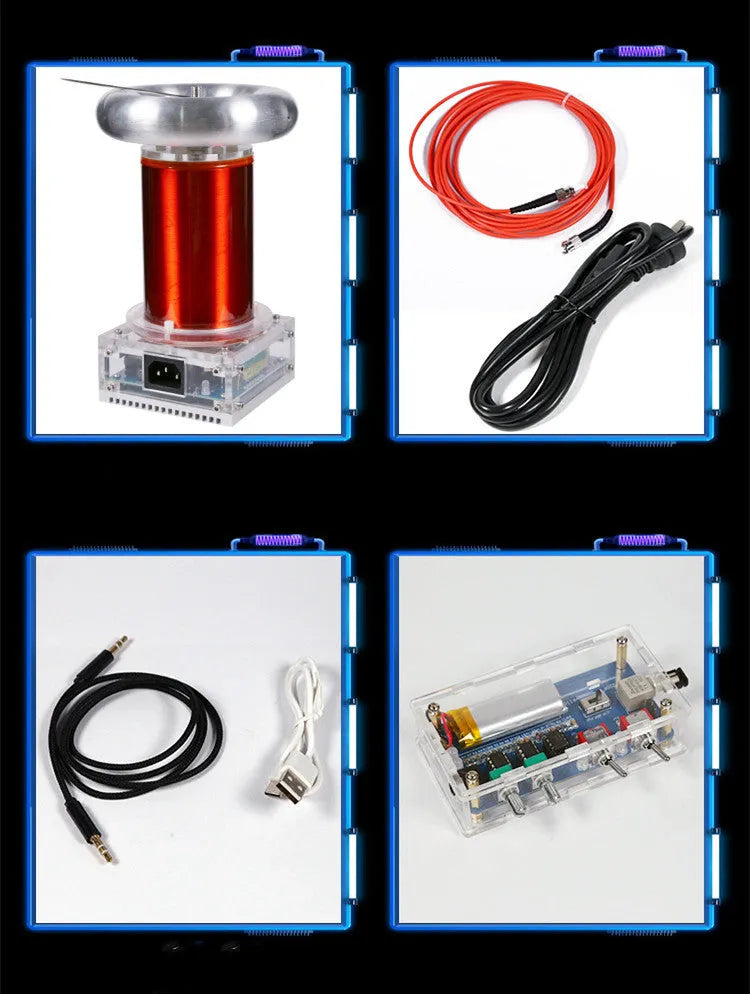

Measuring 100mm x 115mm x 205mm and weighing approximately 1kg, the driver board offers a substantial yet manageable footprint for transportation between venues. Its robust construction accommodates the components necessary for 250W average power output while remaining sufficiently compact for tabletop demonstrations or temporary installations. The included controller, cables, and optical fibre complete the portable system, requiring only a standard power source for operation.

Usage Scenarios and Environmental Fit

This Tesla coil system serves effectively in controlled educational settings, including physics classrooms, university laboratories, and public science centres where supervised demonstrations illustrate electrical principles. For entertainment applications, it provides striking visual effects for stage performances, music venues, and special events where music-synchronised plasma arcs enhance atmospheric impact. The absence of ground wire requirements and direct 220V operation makes it adaptable to various indoor environments with standard power access, though always observing the specified safety distances and operational guidelines.
