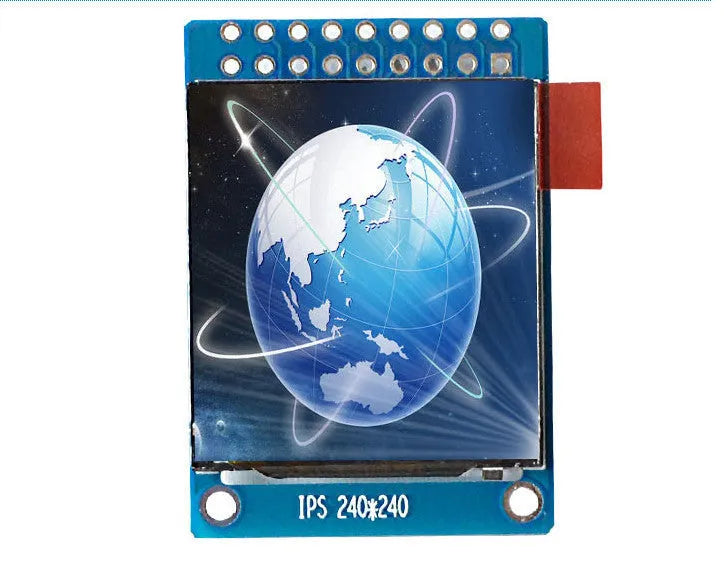

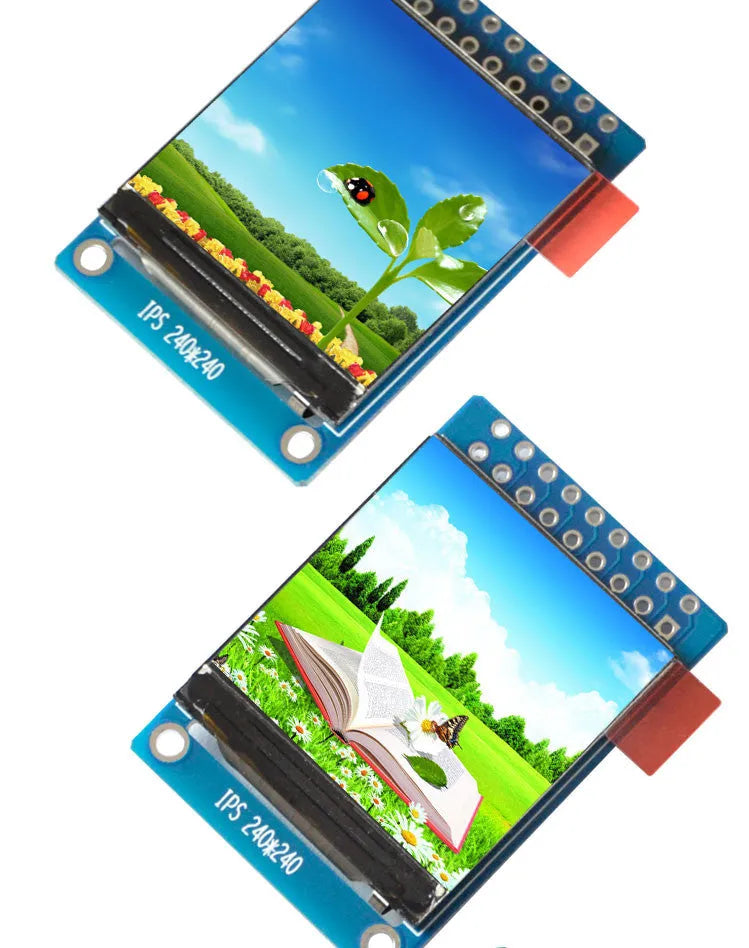

1.3 Inch 240x240 IPS LCD Display Module with ST7789 Chip for Electronics Projects

This 1.3-inch IPS LCD display module is designed for makers, hobbyists, and developers requiring a small, high-quality visual output for their custom electronics. Measuring just 27.78 by 39.22 millimetres, it provides a square, high-definition screen with 240x240 pixel resolution. The IPS (In-Plane Switching) technology delivers more vivid colour and a full viewing angle compared to standard TFT LCDs, making it suitable for applications where readability from different angles is important. The module is centred around the ST7789 display controller and offers interface flexibility, serving as a practical component for data monitors, portable devices, or interactive project interfaces.

Features and Construction

This display module is built as a ready-to-integrate component, focusing on core functionality for electronic projects. Its construction is defined by its screen technology, controller, and physical interface, providing the essential elements for adding a visual output to a circuit.

Material and Build

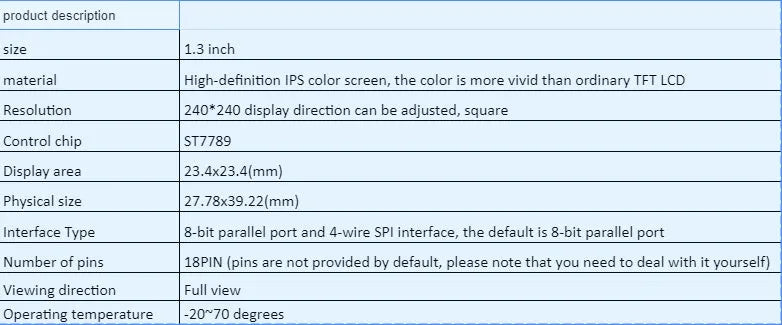

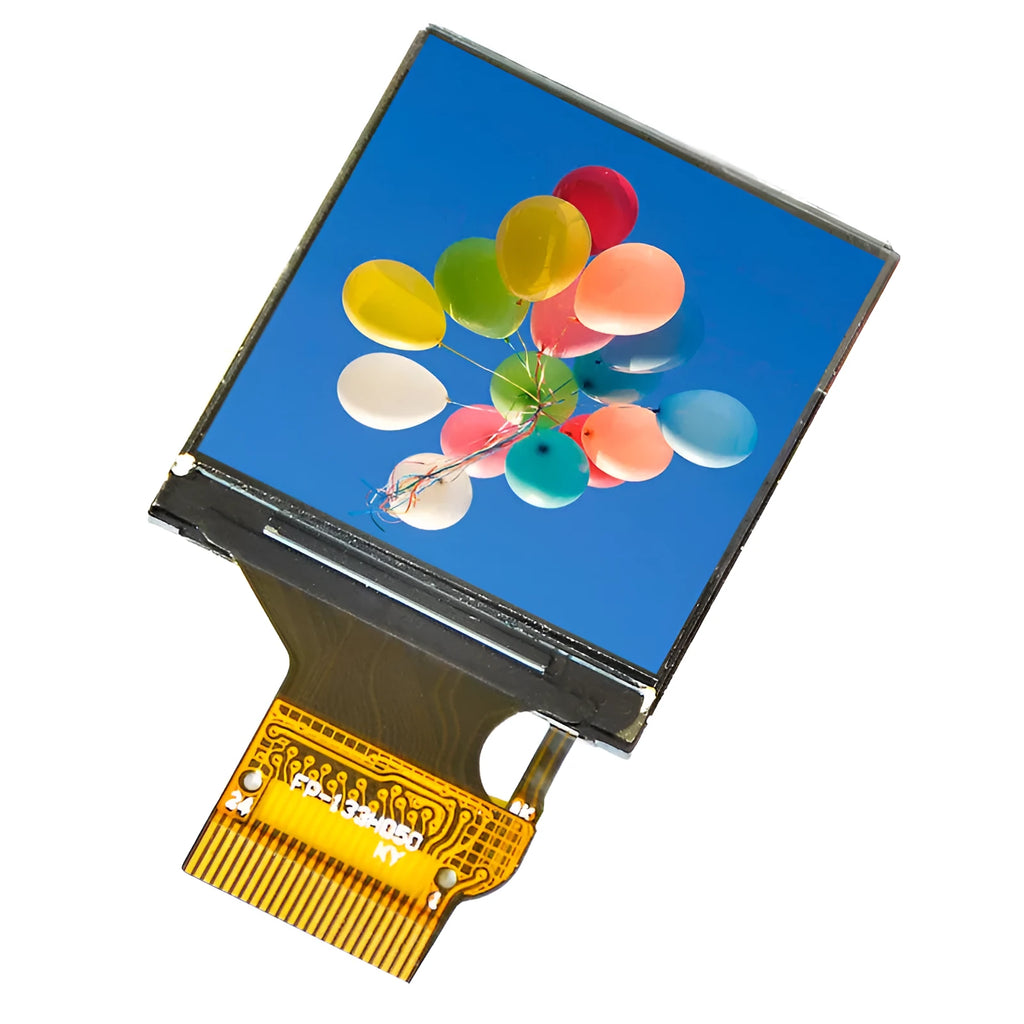

The core component is a high-definition IPS colour screen. IPS screen technology is known for its wider viewing angles and improved colour reproduction over traditional TFT screens, which translates practically to a clearer and more consistent image for the user. The module is built around the ST7789 integrated circuit, a dedicated display driver chip that handles the graphics processing, allowing the main microcontroller to send commands and data without managing low-level screen timing.

Size and Practical Fit

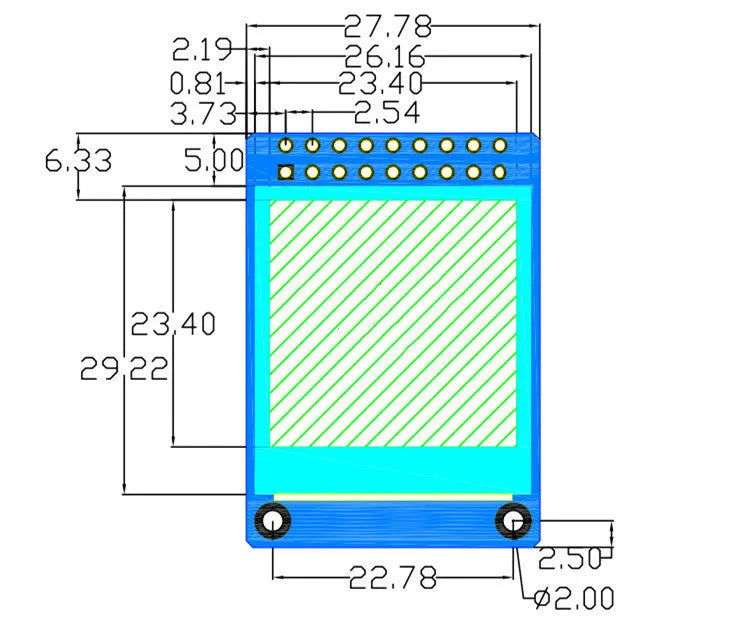

The active display area measures 23.4 by 23.4 millimetres, providing a square canvas for graphics or text. The entire module's physical footprint is 27.78 by 39.22 mm, making it a compact solution for space-constrained projects. The 18-pin connection header, for which the user must supply the pins, allows for a secure mechanical and electrical connection to a breadboard, perfboard, or custom PCB. The square form factor and adjustable display orientation software setting offer flexibility in how the module is physically mounted within an enclosure.

Uses and Placement

This module is intended for integration into broader electronic systems rather than standalone use. Its specifications make it applicable for both hobbyist experimentation and more polished prototype development.

Event or Professional Use

In a professional prototyping or development context, this display can serve as a user interface component for embedded systems, sensor data loggers, or control panel readouts. Its ST7789 controller and standard parallel/SPI interfaces mean it can be quickly paired with common development platforms like Arduino, Raspberry Pi Pico, or STM32 boards. The operating temperature range of -20 to 70 degrees Celsius supports use in environments beyond typical room temperature, adding to its robustness for field-deployed prototypes.

Everyday Home Use

For DIY enthusiasts and makers, this display is ideal for home electronics projects such as custom weather stations, retro game consoles, smart home control panels, or robotics telemetry displays. The vivid IPS screen enhances the visual appeal of a finished project, while the dual interface options provide a learning opportunity for understanding different digital communication protocols. Its compact size makes it easy to house in 3D-printed or handmade enclosures.

Benefits and Buying Value

The value of this module lies in its component-level specification and the flexibility it offers to the builder. It provides a specific set of confirmed features without unnecessary extras, keeping the focus on integration and application.

Reuse and Low Maintenance

As an electronic component, the display module is designed for soldered or socketed installation within a larger project. Its solid-state construction has no moving parts, suggesting low physical maintenance. The ST7789 chip is widely supported by open-source libraries for many platforms, which means the software driving the display can be adapted and reused across different projects, protecting the buyer's investment in learning and code development.

Why Choose This Product

Choose this display if you need a confirmed 1.3-inch square IPS screen with a 240x240 resolution and require the interface flexibility offered by the ST7789 controller's dual parallel and SPI modes. It is a practical choice when the project specifications call for this exact screen size and technology, and when the user has the ability to source and attach the required connection pins. It provides a known quantity for planning project dimensions and writing driver code.
