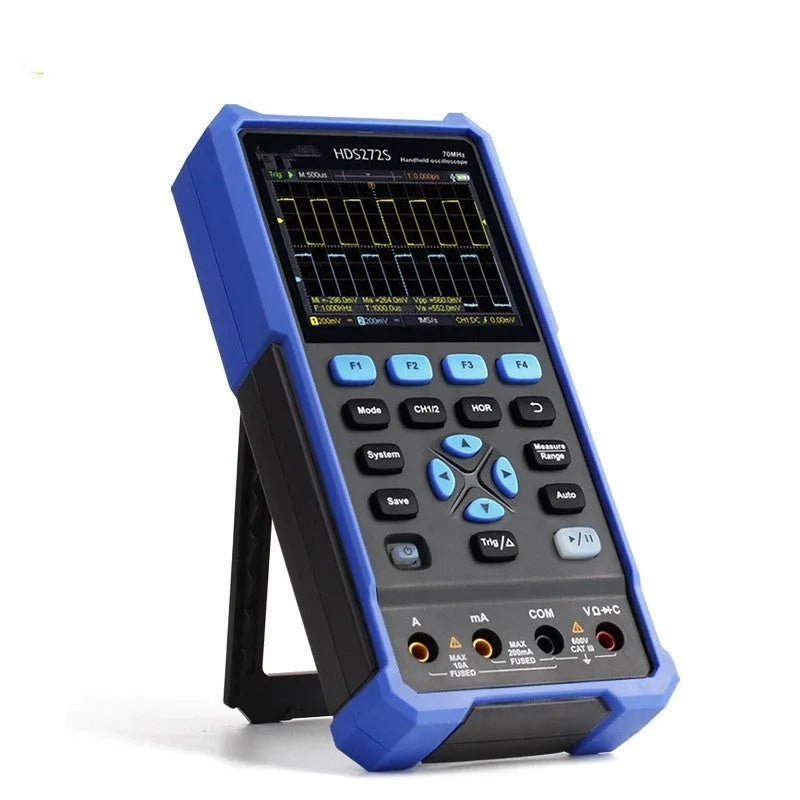

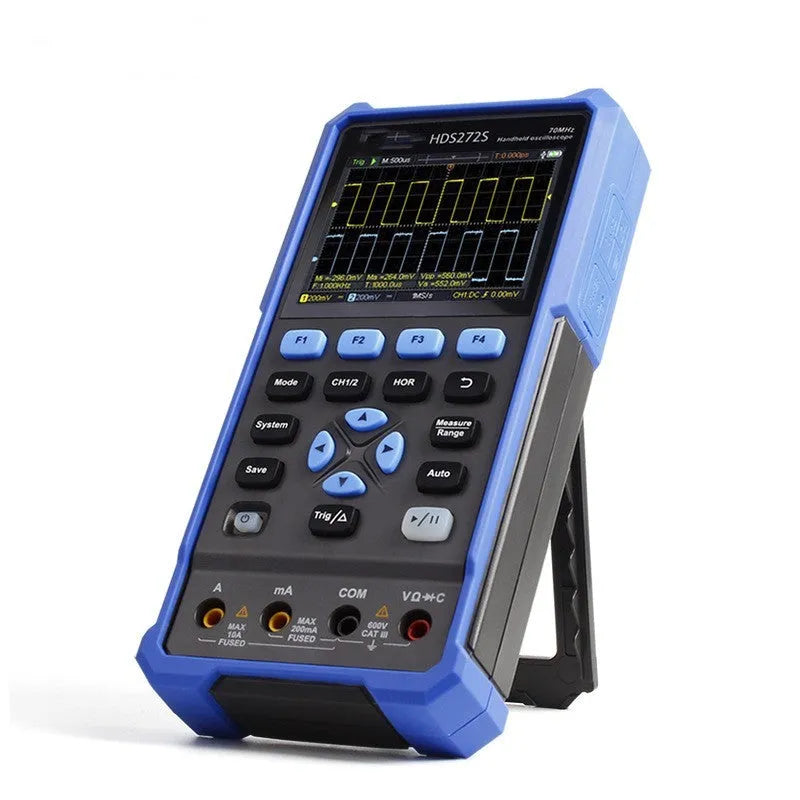

Owon HDS272 Handheld Digital Oscilloscope with 40-70MHz Bandwidth for Automotive Diagnostics

The Owon HDS272 represents a practical solution for technicians needing portable waveform analysis capabilities in automotive repair and general electronic testing scenarios. This handheld digital oscilloscope combines essential measurement functions with convenient portability, measuring just 198mm by 96mm by 38mm for easy transport between workstations or in field service situations. With a bandwidth range of 40-70MHz and sampling rate of 250MSa/s, it provides sufficient performance for troubleshooting common automotive electrical systems including ignition timing, sensor signals, and communication bus waveforms while maintaining compact dimensions suitable for workshop use.

Features and Construction

This oscilloscope is designed around the practical requirements of automotive technicians and electronics enthusiasts who need reliable waveform capture without the bulk of traditional bench instruments. The compact construction allows it to fit comfortably in hand or rest conveniently on a workbench, while the complete accessory set ensures immediate functionality upon unpacking.

Material and Build

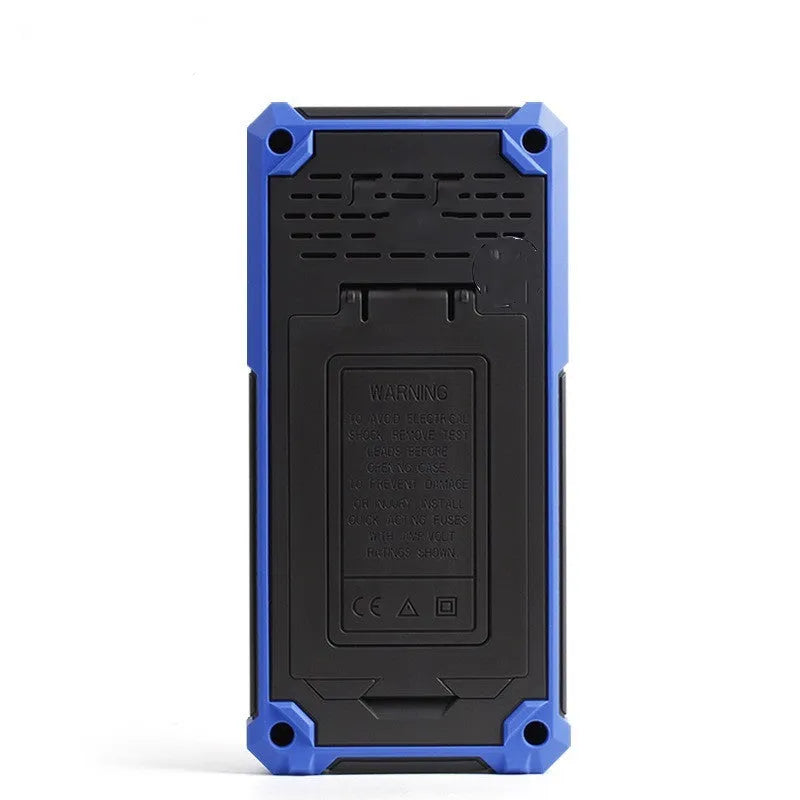

The oscilloscope features electronic components housed within a portable case designed for workshop environments. The construction prioritises functionality and portability, with the included carrying bag providing protection during transport between job sites or within a workshop setting. All essential connection points and controls are accessible on the compact chassis, maintaining operational capability while minimising overall dimensions.

Size and Practical Fit

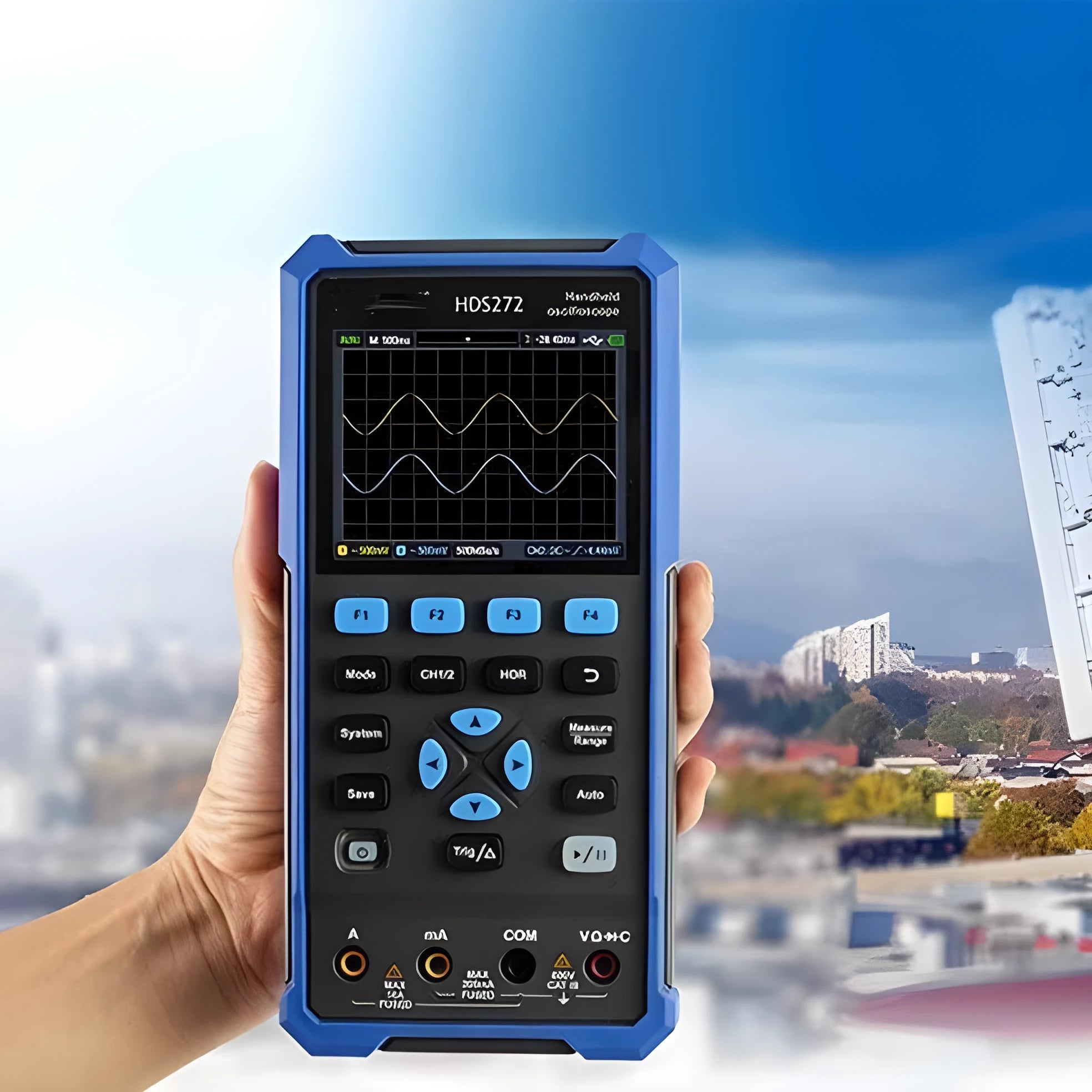

With dimensions of 198mm in length, 96mm in height, and 38mm in depth, the HDS272 occupies minimal workspace while providing full oscilloscope functionality. This compact form factor allows technicians to place the unit conveniently beside the vehicle or equipment being tested, with the handheld design enabling examination of waveforms in tight engine compartments or equipment racks where bench oscilloscopes cannot easily reach.

Uses and Placement

The HDS272 finds application across multiple scenarios where portable waveform analysis proves valuable. From automotive workshop diagnostics to field service calls and educational electronics projects, its combination of capability and portability addresses situations where traditional bench oscilloscopes present logistical challenges.

Event or Professional Use

In professional automotive repair environments, technicians can utilise the 40-70MHz bandwidth and 250MSa/s sampling rate to examine ignition system waveforms, sensor outputs, and communication bus signals across various vehicle systems. The 10000 wfms/s waveform capture rate provides stable display of repetitive signals, while the complete accessory set including oscilloscope probe, multimeter pen, and BNC-to-crocodile clip adapter ensures compatibility with standard automotive test points and connectors.

Everyday Home Use

For electronics hobbyists and DIY enthusiasts, the HDS272 offers accessible waveform analysis without requiring dedicated bench space. The portable design allows storage in limited workshop areas, while the included carrying bag protects the instrument between projects. The USB cable connection provides data transfer capability, and the correction pen maintains measurement accuracy over time with regular calibration procedures as outlined in the included manual.

Benefits and Buying Value

The HDS272 oscilloscope package delivers practical advantages through its comprehensive accessory inclusion and portable design philosophy. Rather than requiring separate purchases of probes and carrying cases, this kit provides immediately usable functionality with all essential components included in one purchase.

Reuse and Low Maintenance

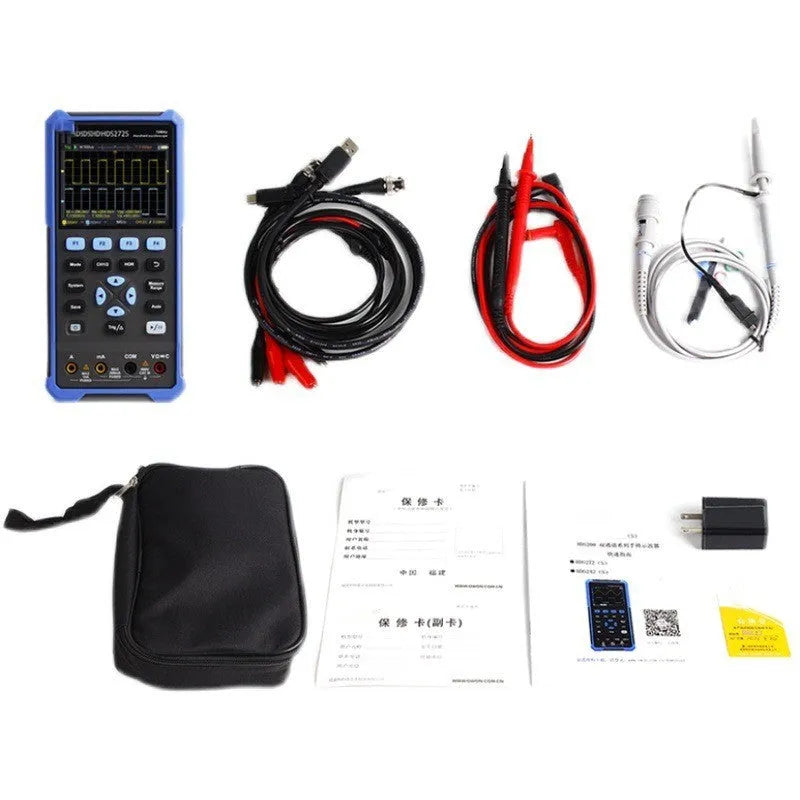

All included components—oscilloscope probe, multimeter pen, BNC adapter, correction pen, USB cable, and carrying bag—are designed for repeated use across multiple diagnostic sessions. The portable bag protects the oscilloscope during transport between jobs, while the correction pen helps maintain measurement accuracy with periodic calibration. The comprehensive manual provides guidance for both initial setup and ongoing operation.

Why Choose This Product

The Owon HDS272 combines specific technical specifications—40-70MHz bandwidth, 250MSa/s sampling rate, and 10000 wfms/s waveform capture—with practical portability dimensions of 198x96x38mm. Unlike oscilloscopes that require separate accessory purchases, this complete kit includes probe, adapter, correction tools, and carrying case for immediate functionality. For automotive technicians needing workshop-to-vehicle mobility or electronics enthusiasts with limited bench space, this combination of performance specifications and portable design provides a balanced solution.
