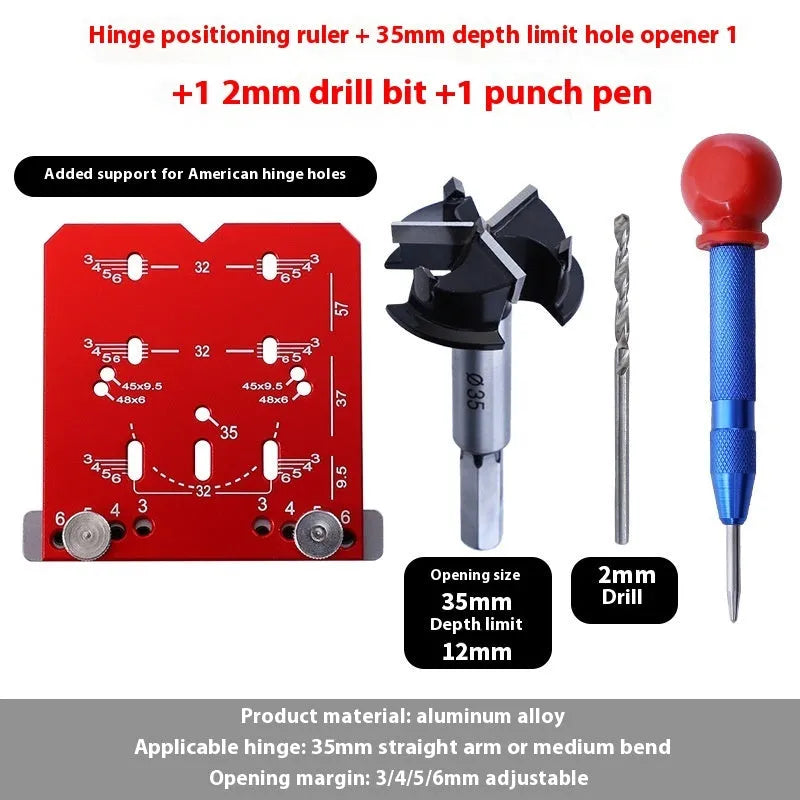

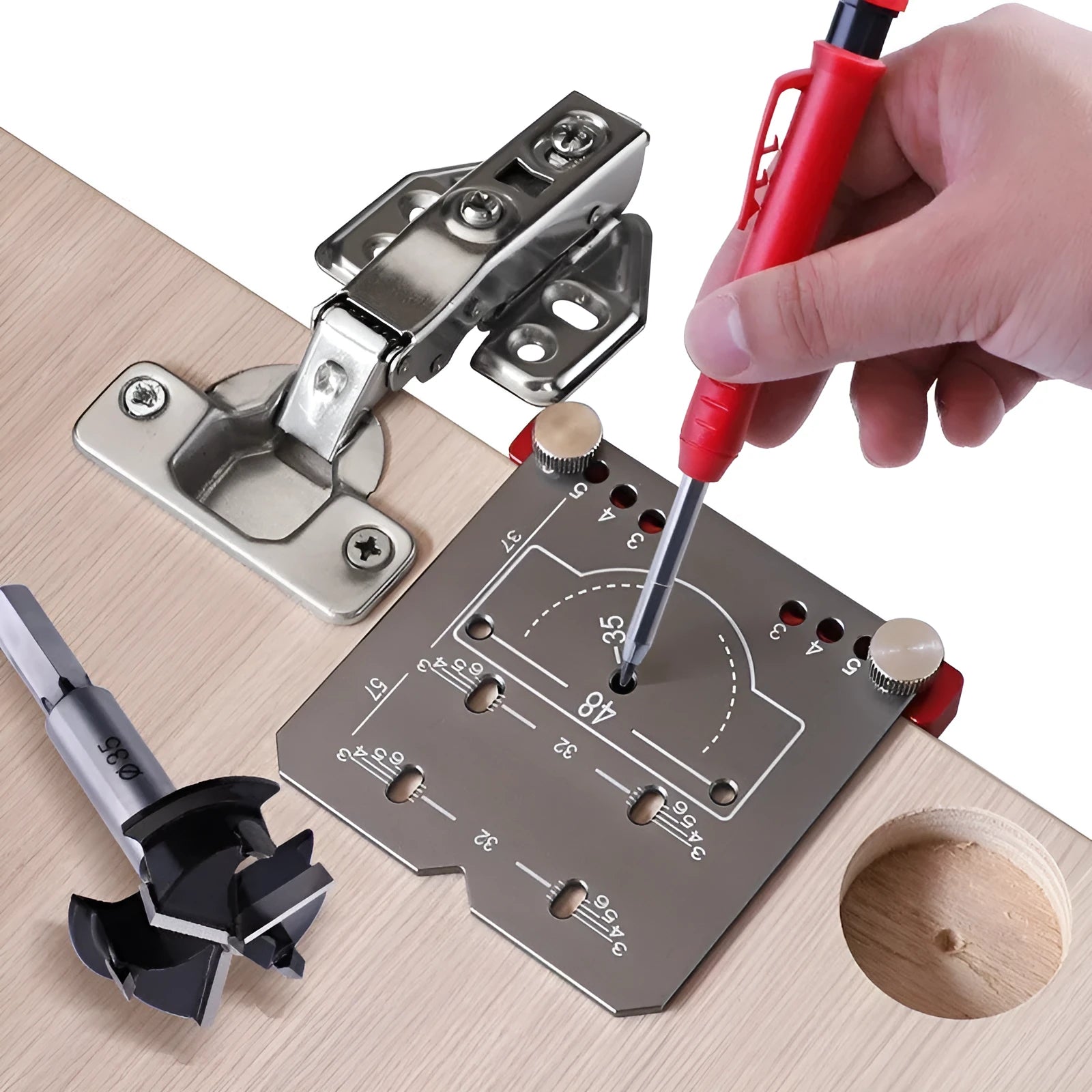

Aluminium Alloy Hinge Punch Locator: Adjustable Margin Tool for 35mm Cabinet Hinge Installation

Installing cabinet and wardrobe door hinges accurately requires precise marking to ensure proper alignment and smooth operation. This hinge punch locator addresses that need with a dedicated tool designed specifically for 35mm hinge systems commonly used in home cabinetry. Constructed from aluminium alloy, the locator ruler provides a stable, lightweight platform for marking hinge positions without guesswork. The adjustable margin feature allows selection between 3mm, 4mm, 5mm, or 6mm openings to match different hinge types and installation preferences. Whether you're fitting new cabinet doors, updating wardrobe doors, or undertaking woodworking DIY projects, this tool helps achieve professional-looking results with consistent positioning.

Features and Construction

The hinge punch locator combines practical design elements to support accurate hinge installation. Its construction focuses on materials and features that facilitate precise marking operations for home woodworking tasks.

Material and Build

The main body of the hinge locating ruler utilises aluminium alloy, a material chosen for its combination of lightweight properties and structural rigidity. This construction helps maintain dimensional stability during use, ensuring that measurements remain accurate throughout the marking process. The hard alloy blade incorporated into the limit tapper component undergoes high-temperature heat treatment during manufacturing, a process intended to enhance the blade's hardness and wear resistance. This treated cutting edge aims to provide clean, sharp punch marks through various wood materials commonly used in cabinet and door construction.

Size and Practical Fit

This tool is specifically calibrated for 35mm hinge systems, including both extended arm and middle bend hinge types frequently found in cabinet and wardrobe hardware. The adjustable margin mechanism allows selection between 3mm, 4mm, 5mm, and 6mm opening distances, providing flexibility for different installation scenarios. While exact dimensions of the tool itself aren't specified, its design focuses on accommodating standard hinge sizes and providing sufficient reference surfaces for alignment against door edges. The practical fit extends to household applications where accurate hinge placement contributes to proper door function and alignment.

Uses and Placement

This hinge locator serves both specific installation tasks and broader woodworking applications. Its design supports accurate positioning in various cabinetry scenarios commonly encountered in home improvement projects.

Event or Professional Use

For professional cabinet installers or serious woodworking enthusiasts, consistent hinge placement affects both appearance and functionality. The adjustable margin feature allows matching different hinge types and installation preferences without requiring multiple specialised tools. The hard alloy blade provides clean marking that reduces tear-out and imprecision during drilling operations. When fitting multiple doors or cabinets, the locator helps maintain uniform hinge positioning across all units, contributing to a cohesive finished appearance. The tool's calibration for 35mm hinge systems aligns with common professional hardware standards.

Everyday Home Use

Home DIY projects involving cabinet updates, wardrobe door replacement, or new furniture construction benefit from the precise marking capability. The simplified operation reduces measurement errors that can lead to misaligned doors or binding hinges. Household applications include installing kitchen cabinet doors, fitting wardrobe doors in bedrooms, updating bathroom vanity units, or assembling ready-to-assemble furniture with hinge components. The tool's household designation indicates its suitability for occasional use rather than continuous industrial applications, with construction materials selected accordingly.

Benefits and Buying Value

The hinge punch locator offers practical advantages for woodworking projects through its dedicated design and material choices. These benefits focus on improving installation accuracy and simplifying the marking process.

Reuse and Low Maintenance

As a marking and positioning tool rather than a consumable item, the hinge locator supports repeated use across multiple projects. The aluminium alloy construction contributes to durability for occasional household applications, while the heat-treated hard alloy blade aims to maintain cutting effectiveness through multiple marking operations. Maintenance requirements remain minimal beyond keeping the tool clean and storing it properly to protect the cutting edges. The adjustable margin mechanism provides ongoing value as it adapts to different hinge types and installation preferences without requiring replacement.

Why Choose This Product

This hinge punch locator addresses a specific need in cabinet and door installation: achieving accurate, consistent hinge placement without complex measurements. The dedicated 35mm hinge calibration matches common hardware sizes, while the adjustable margin feature (3mm, 4mm, 5mm, 6mm) provides flexibility for different installation scenarios. The aluminium alloy and hard alloy blade construction focuses on practical performance rather than decorative elements, prioritising functional accuracy. For home woodworking projects requiring precise hinge installation, this tool offers a specialised solution that can improve results compared to improvised marking methods.
