ELRS 915M 2.4G Dual-Frequency Receiver Base Station for Sub-30cm FPV Drones and RC Aircraft

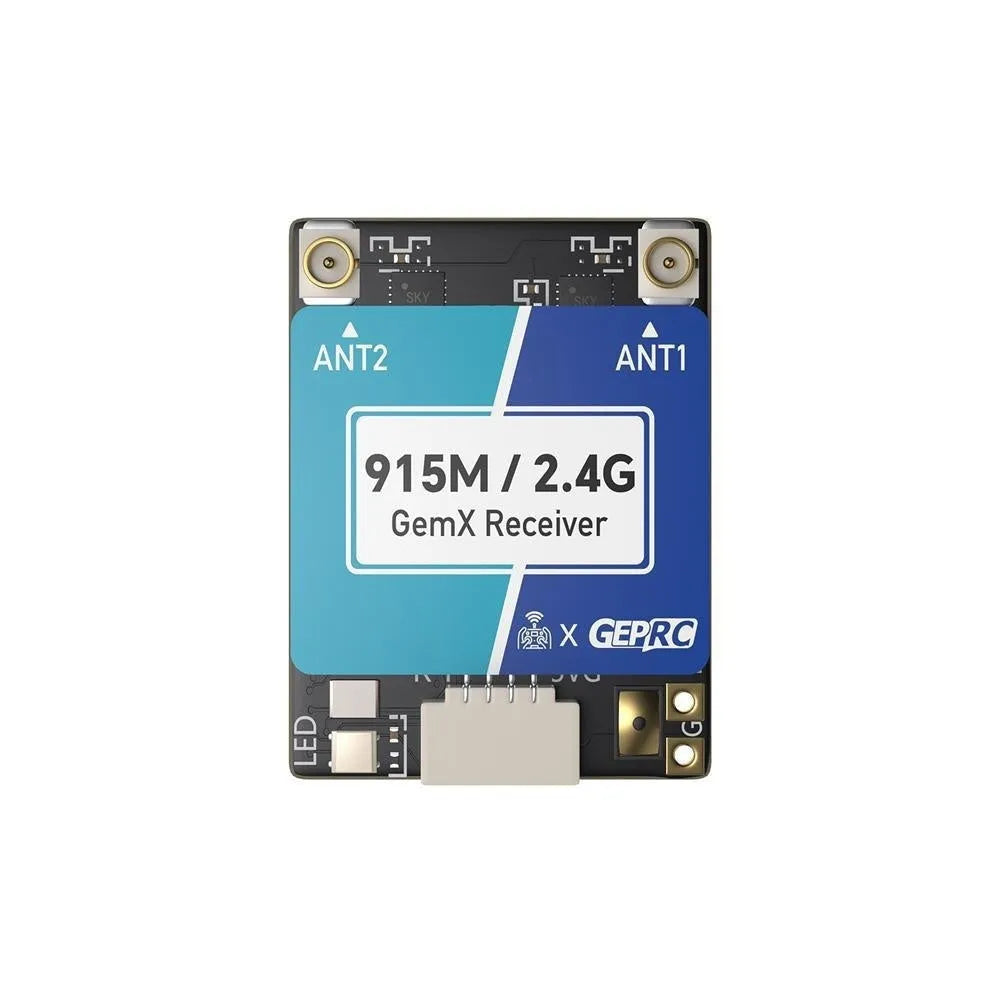

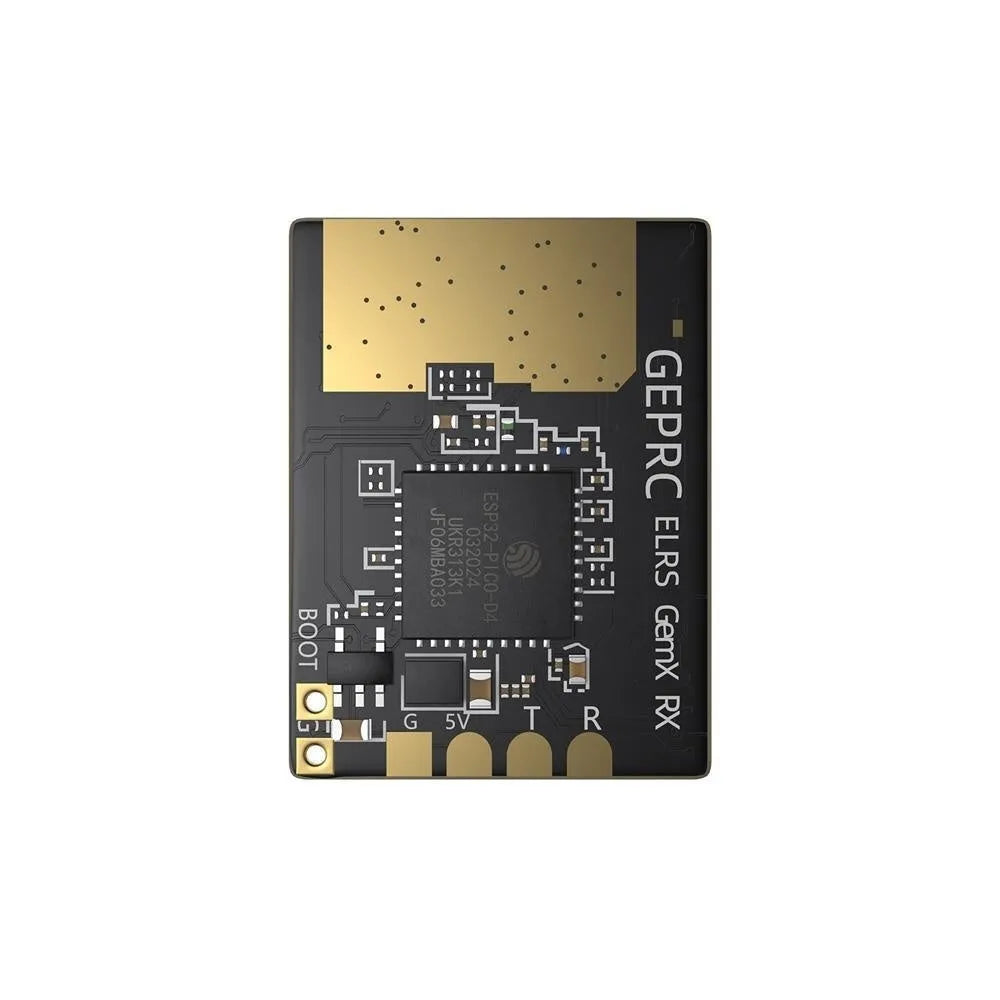

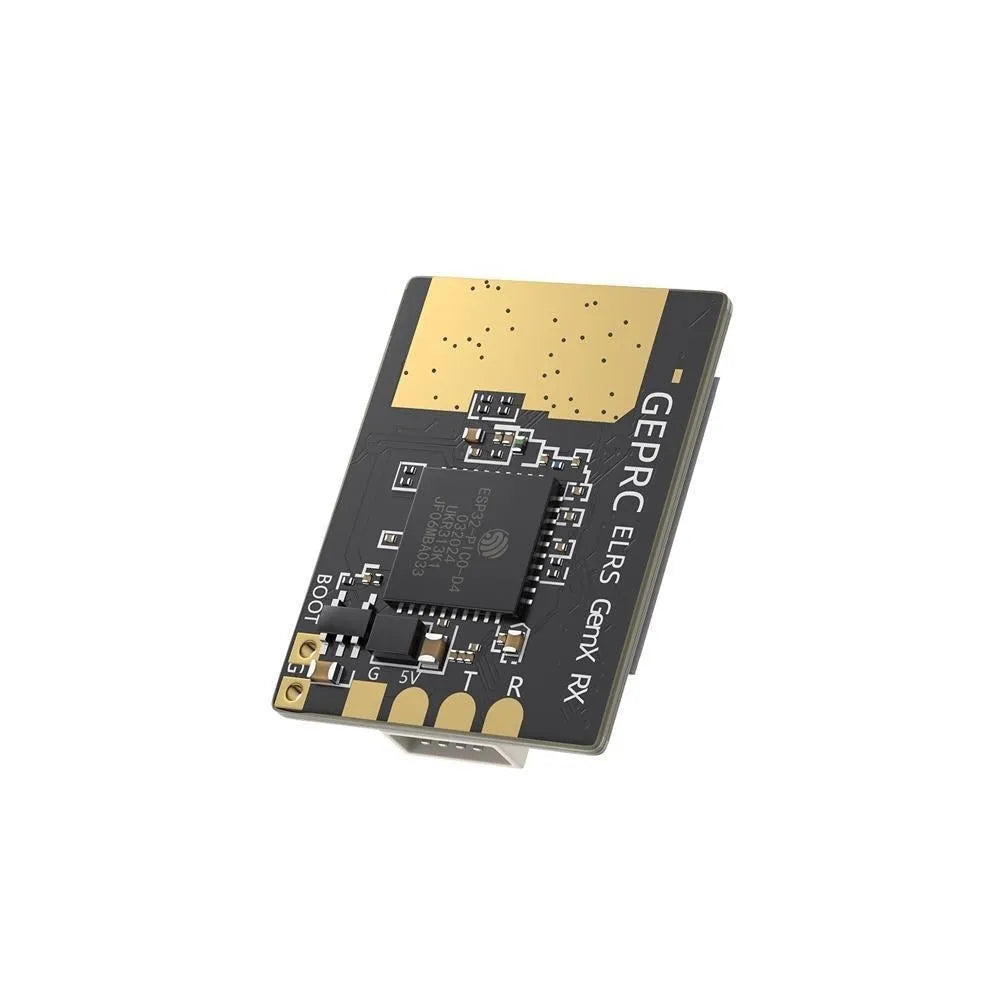

This receiver base station provides a dedicated dual-frequency solution for pilots operating smaller FPV (First Person View) drones and RC model aircraft under 30cm in size. It centres around an ELRS (ExpressLRS) protocol Gemini receiver capable of operating on both 915MHz and 2.4GHz bands, offering pilots a choice depending on local regulations or interference levels. The kit is supplied as a complete package with the necessary antennas, wiring, and accessories for installation, mounted on a metal base that offers a stable physical platform for the electronics. It is designed for integration into various 'crossing machine' style drones and compact quadcopters where reliable control link reception is critical.

Features and Construction

The primary feature of this product is its dual-band capability, supported by the included Gemini receiver and antennas. The construction focuses on providing the essential components needed to establish a control link for a small-scale aircraft.

Material and Build

The base unit itself is constructed from metal, which provides a solid and likely weighty platform to house or mount the receiver electronics. This material choice suggests a focus on durability and stability for the installed components. The connecting wire supplied is made from silicone, a flexible and heat-resistant material suitable for the vibrations and potential temperature variations within an electronics bay. Other components like the heat shrink tubing are included for finishing the installation securely.

Size and Practical Fit

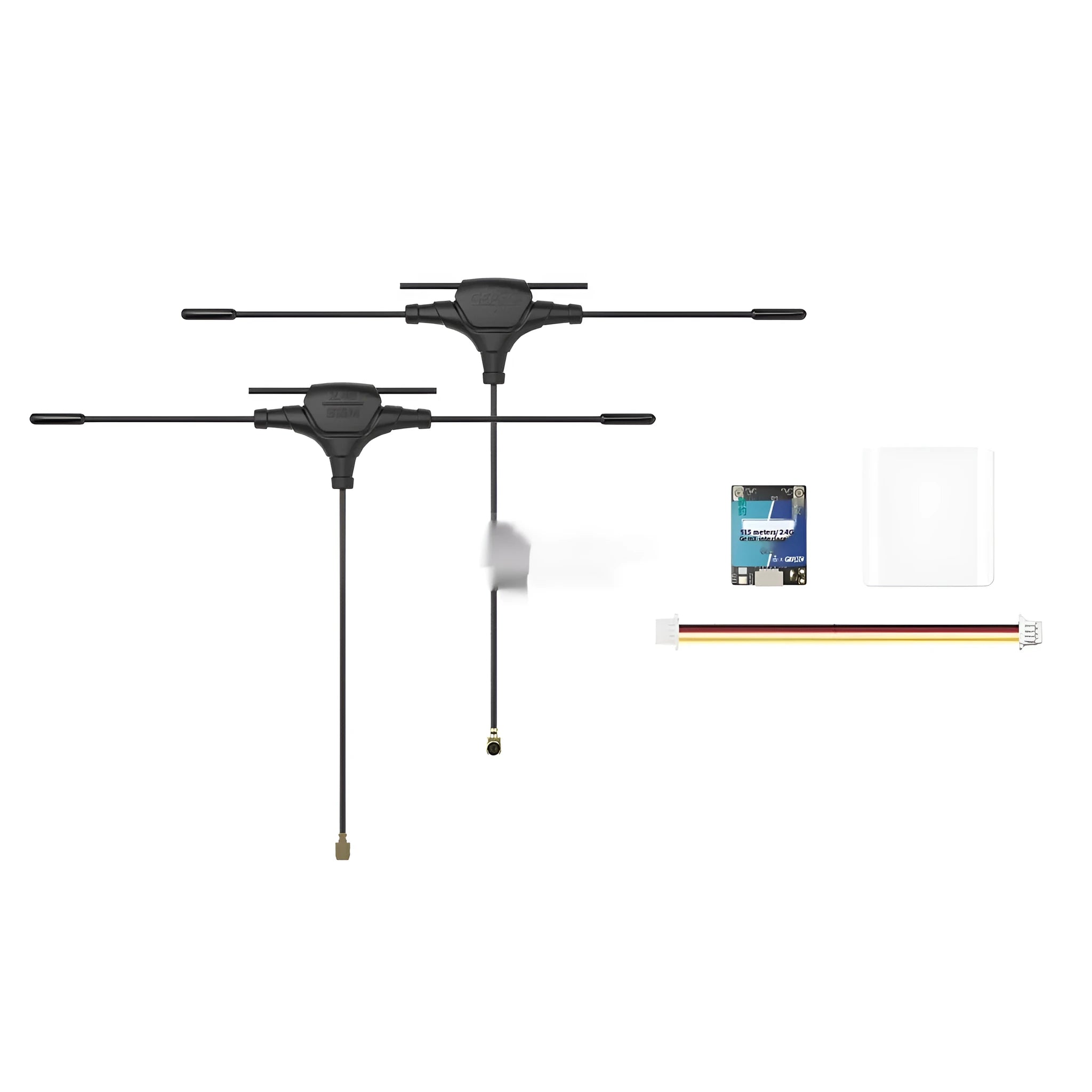

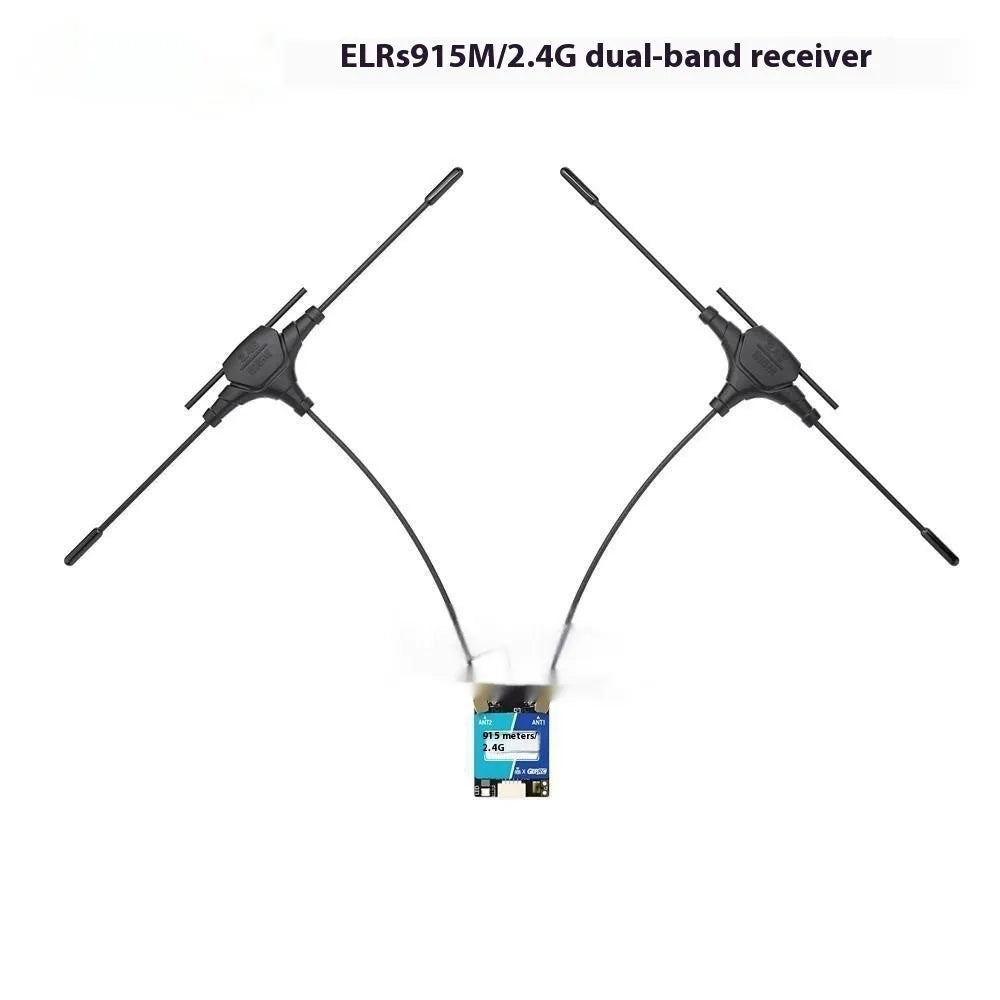

The entire base station unit is noted to be less than 30cm in its largest dimension, making it suitable for integration into smaller drones and aircraft where space is at a premium. This size guideline indicates it is intended for compact builds. The inclusion of two T-shaped antennas suggests a diversity setup for improved signal reception, and their form factor is a common choice for RC applications. The 4-pin connector on the silicone wire defines the interface for power and signal to the flight controller.

Uses and Placement

This product is targeted at the hobbyist and possibly light commercial drone operator working with specific sizes and protocols. Its application is narrow and technically focused.

Event or Professional Use

For FPV racing events or professional filming using sub-30cm drones, a reliable control link is non-negotiable. The dual-frequency option allows pilots to select the 915MHz band for potentially longer range and better penetration, or the 2.4GHz band for more ubiquitous compatibility and lower latency in crowded spectra. The metal base can help anchor the receiver securely in a frame designed for high-G manoeuvres.

Everyday Home Use

For the hobbyist building or upgrading a small FPV drone at home, this kit simplifies the process. Having the receiver, correct antennas, wiring, and even heat shrink in one package means fewer separate purchases. The user manual is intended to guide installation, making it accessible for those with basic soldering and assembly skills working on personal projects.

Benefits and Buying Value

The value lies in the specificity of the kit for a particular niche and the completeness of the offering for that application.

Reuse and Low Maintenance

The metal construction implies a degree of physical robustness, suggesting the base could be reused across multiple builds or survive minor crashes if properly mounted. The receiver and antennas, being core communication components, are typically not consumable items and should function long-term with proper installation. The kit format means all compatible parts are sourced together, reducing compatibility issues.

Why Choose This Product

This product is a direct match for pilots seeking an ELRS-compatible, dual-band receiver solution specifically for aircraft under 30cm. Its main advantage is the inclusion of both 915M and 2.4G support in one receiver and the provision of a complete set of installation accessories. For someone building a drone within these size and protocol parameters, it offers a convenient single-purchase solution that covers the core control link hardware.
