Electric Projector Ceiling Hanger with Wireless Remote Control and Ultra-Thin Chassis Design

This electric projector lifting system provides a motorised solution for ceiling-mounted projector installations in home cinema environments. Designed with an ultra-thin 10cm chassis profile, it maintains clean ceiling lines when retracted while offering adjustable height positioning through wireless remote operation. The system accommodates projectors up to 10kg in weight and features a synchronous motor powered by standard 220V/50Hz electrical supply, making it suitable for residential installation where convenient height adjustment is required for optimal viewing.

Technical Specifications and Build Quality

The electric hanger features precise engineering specifications that determine its installation requirements and operational capabilities. With a 48W synchronous motor at its core, the system provides reliable lifting action while maintaining electrical efficiency. The mechanical construction includes specific dimensional parameters that guide proper installation and integration with your ceiling structure and projector equipment.

Motor and Power Specifications

At the heart of this lifting system is a 48W synchronous motor designed for smooth, consistent operation. The motor operates on standard 220V/50Hz electrical supply, making it compatible with most residential electrical systems without requiring special converters or transformers. This synchronous motor design helps maintain precise positioning control throughout the lifting and lowering cycles, ensuring your projector returns to the same height positions consistently with each use.

Load Capacity and Weight Considerations

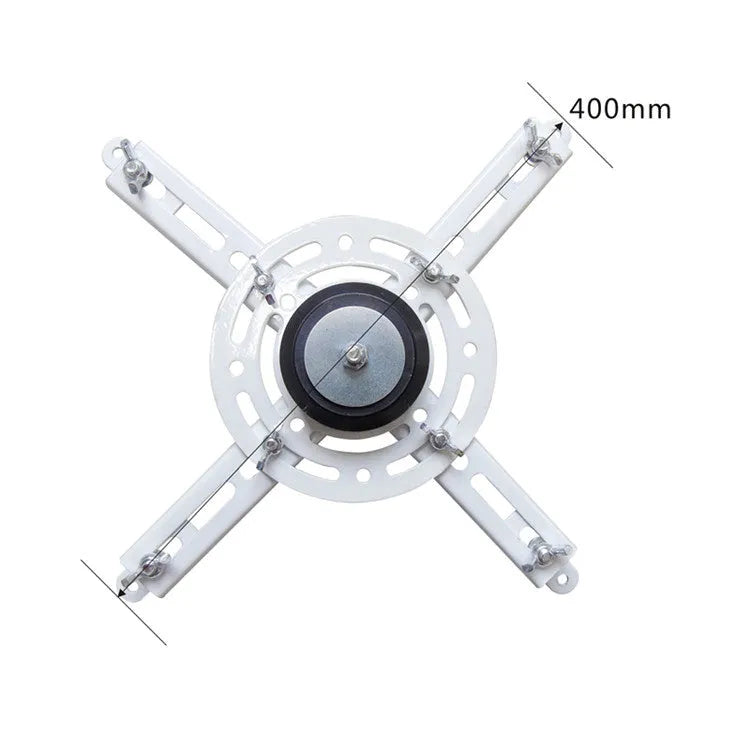

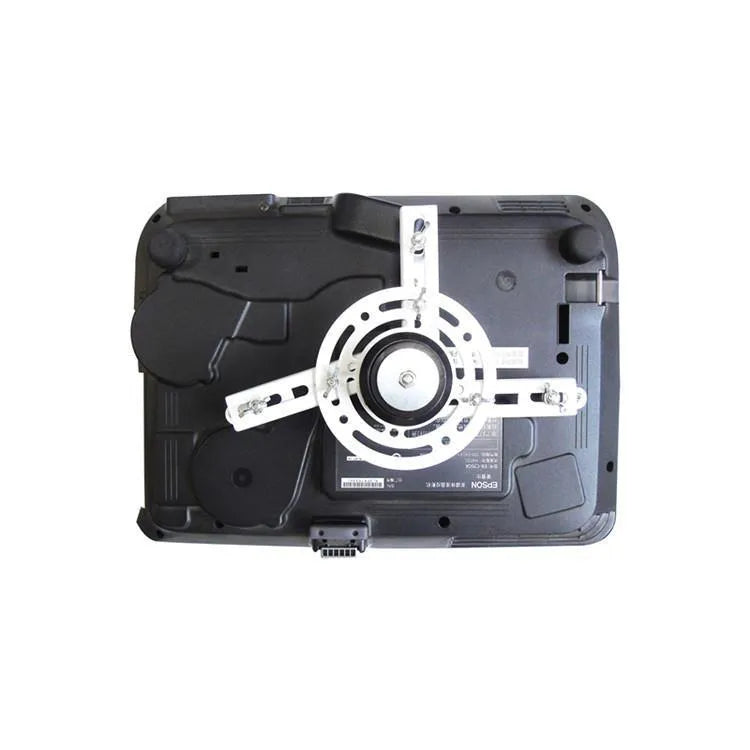

The system has a maximum load capacity of 10kg, which accommodates most home cinema projectors while maintaining safety margins. With a product gross weight of 10.5kg, the complete unit requires ceiling structures capable of supporting this combined weight along with your projector. The lifting mechanism includes a claw attachment with 6cm height clearance, designed to securely hold your projector while maintaining proper ventilation and access to connection ports.

Travel Options and Mechanical Limits

Available in three travel distance configurations, this hanger offers flexibility for different ceiling height requirements. The 0.8m mechanical limit option provides substantial height adjustment for standard room configurations, while the 1m and 1.5m options accommodate higher ceilings or greater adjustment ranges. Each travel option represents the maximum extension distance from the fully retracted position to the fully extended position, giving you controlled vertical movement for optimal screen positioning.

Installation and Mounting Requirements

Proper installation requires attention to the specific dimensional parameters provided with this electric hanger system. The bottom plate design features precise measurements that dictate the necessary ceiling opening and support structure requirements. Following these specifications ensures secure mounting and reliable operation throughout the product's use in your home cinema environment.

Ceiling Opening and Plate Dimensions

The mounting system features a bottom plate with 48x48cm outer dimensions and 42x42cm inner dimensions, creating a 3cm border around the perimeter. For optimal installation, a 45x45cm ceiling opening is recommended to accommodate the plate while maintaining proper clearance. These dimensions ensure adequate support distribution while allowing access to the electrical connections and motor components housed within the chassis.

Height and Extension Measurements

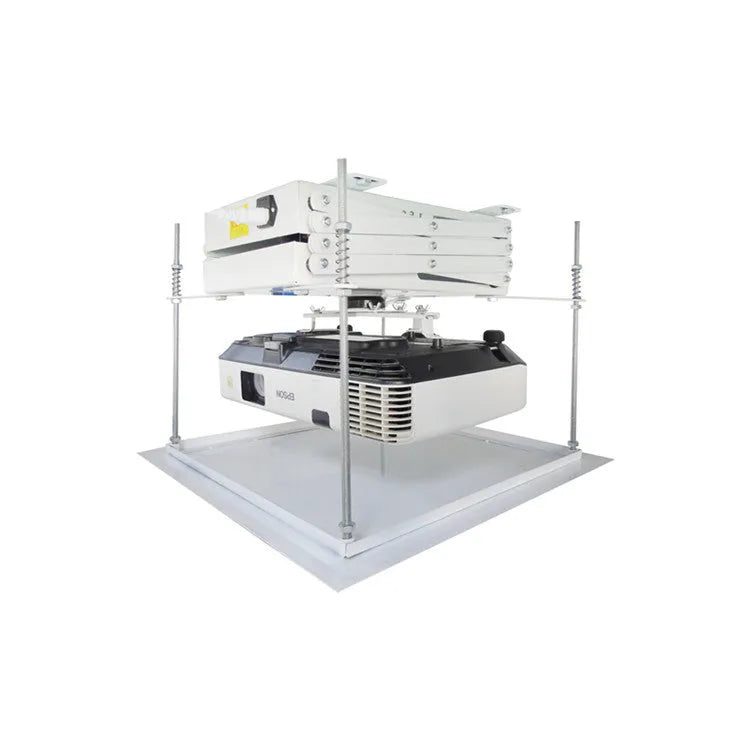

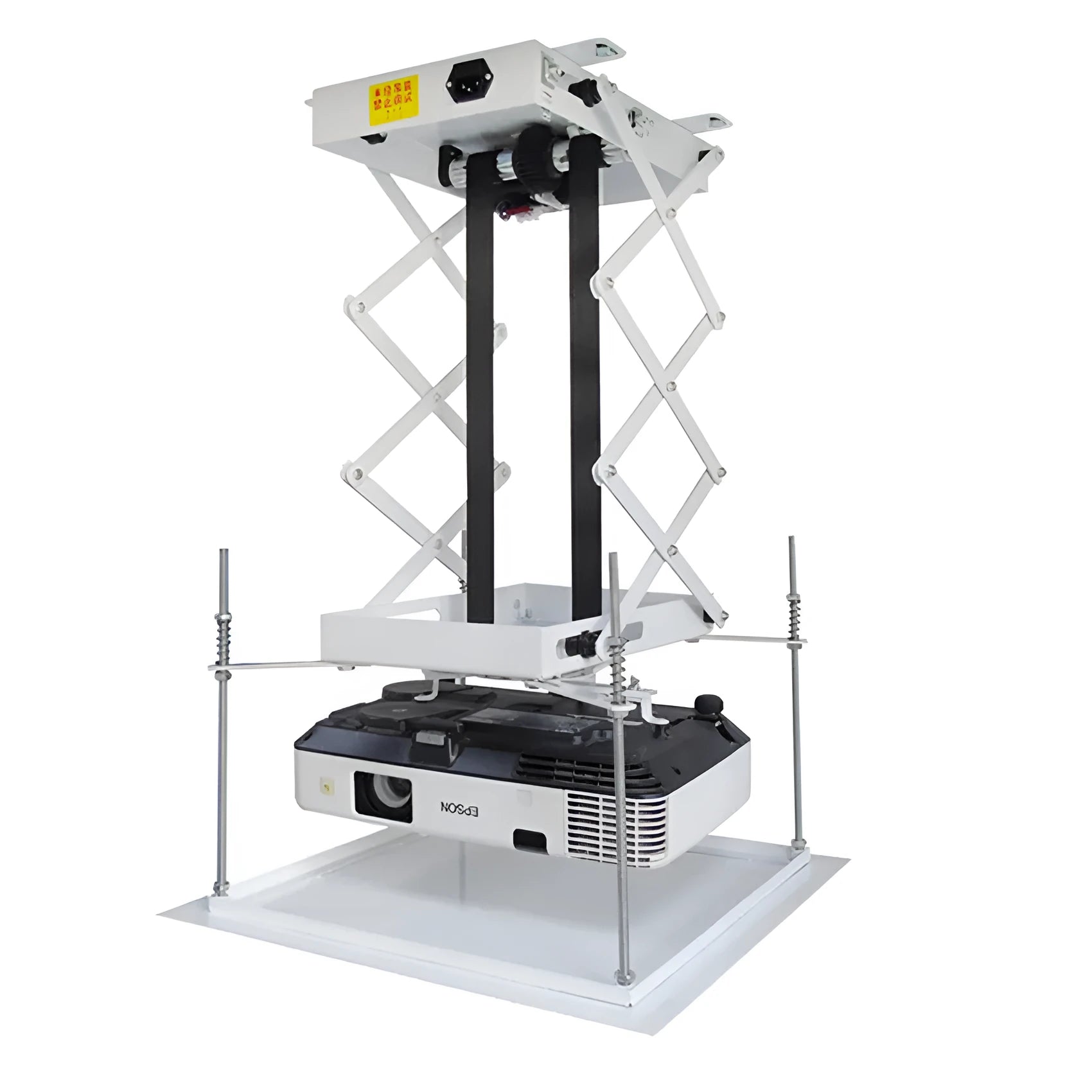

When fully retracted, the chassis maintains an ultra-thin 10cm profile against the ceiling, creating minimal visual intrusion. In its unfolded position, the system extends 18cm from the ceiling before accounting for projector height. Combined with your projector's dimensions (typically adding approximately 70cm), this creates the total extended height that positions your projector at the optimal viewing angle for your screen arrangement.

Electrical Installation Considerations

The 220V/50Hz power requirement means standard residential electrical wiring can power this system without special adaptations. The wireless remote control operates independently of the power connection, allowing you to adjust projector height from your viewing position without physical access to ceiling-mounted controls. This wireless functionality adds convenience while maintaining safety through remote operation capability.

Practical Application and Use Scenarios

This electric projector hanger addresses specific needs in home cinema environments where flexible projector positioning enhances viewing experiences. By providing height adjustment capability, it allows optimization of projector alignment with screens of varying sizes and mounting configurations. The system's design considerations balance technical specifications with practical installation requirements for residential settings.

Home Cinema Integration

In dedicated home cinema rooms, this electric hanger enables projector positioning that accommodates different screen sizes and seating arrangements. The ability to raise or lower the projector helps achieve optimal throw distance and image alignment, particularly when using fixed screens or when multiple viewing configurations are desired. The wireless remote allows adjustment from the viewing position, eliminating the need for ladders or physical access to the ceiling during use.

Multi-Purpose Room Applications

For rooms serving multiple functions, such as living rooms that convert to home cinema spaces, the retractable design helps maintain room aesthetics when the projector isn't in use. The ultra-thin 10cm chassis minimizes visual impact during daytime use or when entertaining guests, while the electric lifting mechanism provides quick deployment when movie viewing begins. This flexibility supports dual-purpose room designs without permanent projector visibility.

Installation Planning Factors

When planning installation, consider the 10kg maximum load capacity relative to your projector's weight, allowing margin for additional cabling or accessories. The 45x45cm recommended ceiling opening should be prepared according to local building codes and ceiling material considerations. Electrical planning should account for the 220V/50Hz requirement, ensuring proper circuit capacity and accessibility for potential maintenance needs.
