Dali 12V Lithium Iron Phosphate Battery Protection Board for 4S Packs with Balancing Function

This Dali battery protection board, commonly referred to as a Battery Management System (BMS), serves as a critical safeguard for 12V lithium iron phosphate (LiFePO4) battery packs configured with four cells in series (4S). Its primary function is to monitor and protect the battery by preventing overcharge, over-discharge, and short circuits, thereby enhancing safety and aiming to prolong the operational lifespan of the connected battery. A key integrated feature is its balancing function, which works to equalise the voltage across all four individual cells during charging. This helps to mitigate capacity loss over time caused by cell imbalance, a common issue in multi-cell battery packs. Available in an extensive selection of current ratings and with an optional cooling fan on higher-power models, it provides a configurable solution for a wide spectrum of DIY energy storage, solar power, caravan, marine, and backup power applications.

Features and Construction

The board's design is centred around managing and protecting 4S LiFePO4 chemistry, which is known for its thermal stability and long cycle life compared to other lithium-ion types. The construction revolves around a standard printed circuit board populated with the necessary control integrated circuits, power MOSFETs for switching the load current, and dedicated circuitry for the cell balancing function.

Material and Build

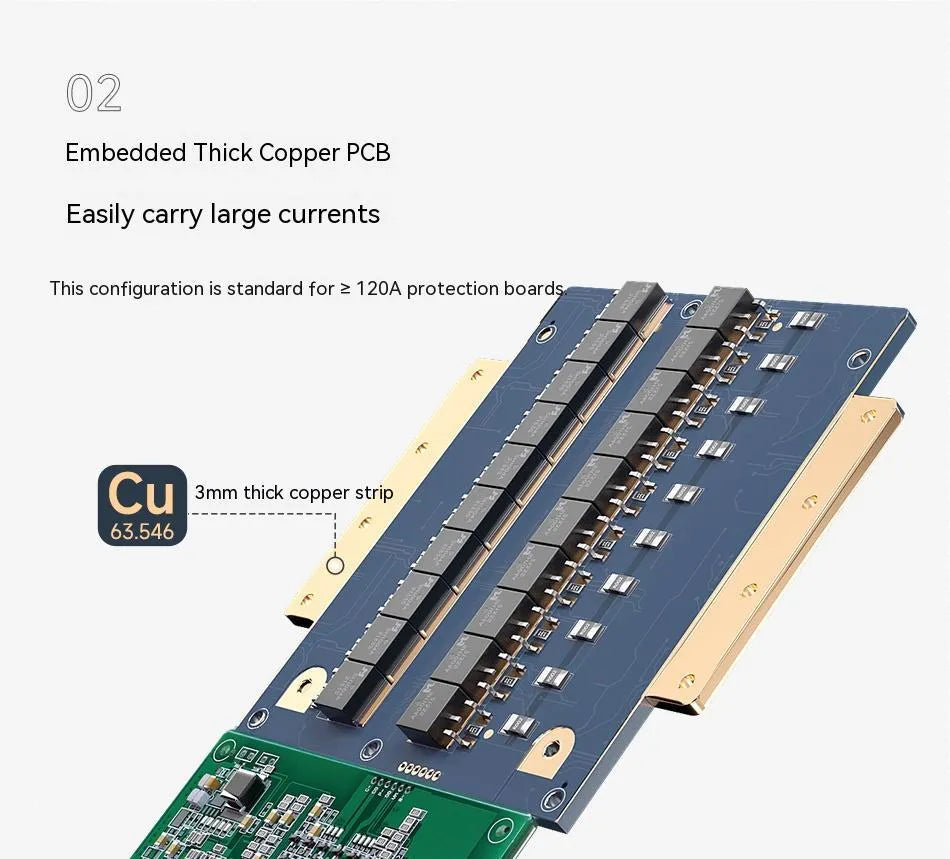

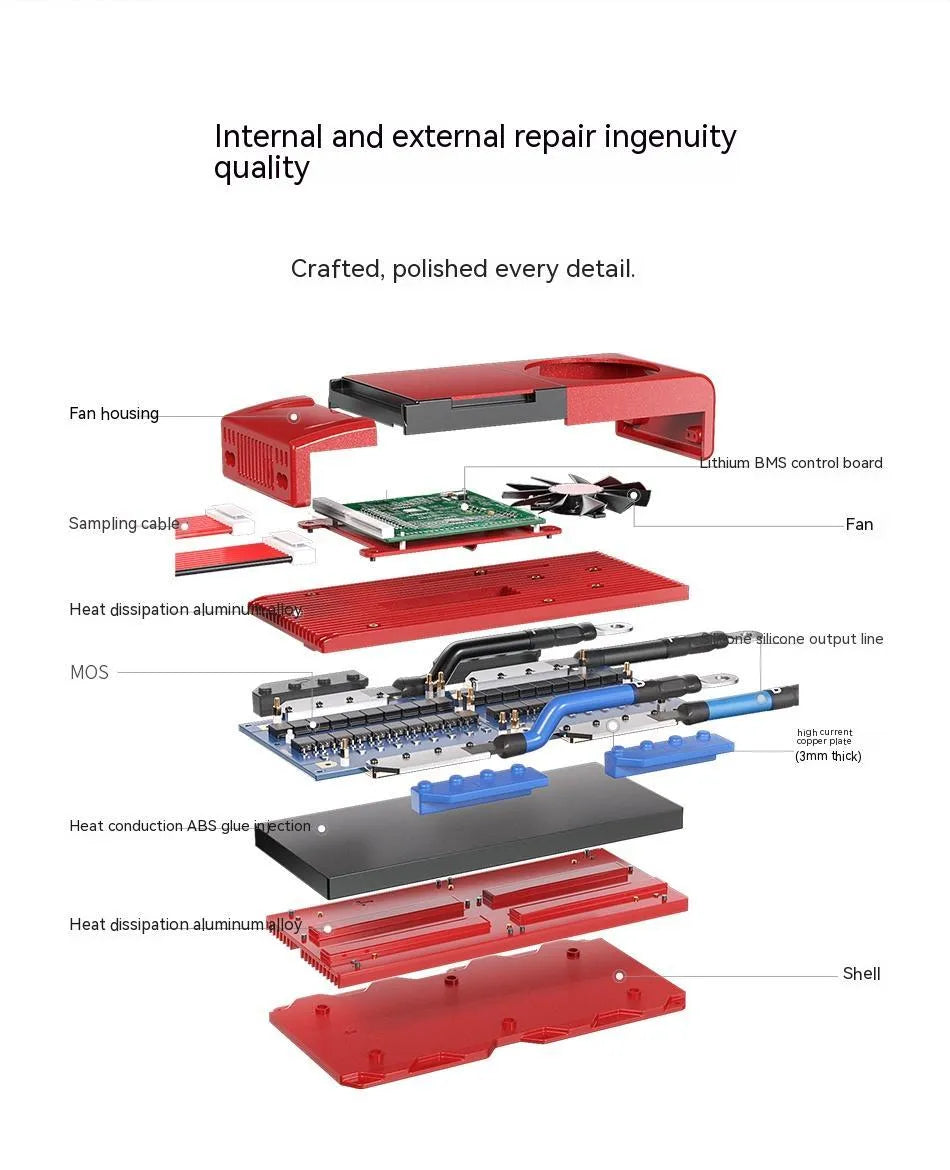

The core component is a fibreglass PCB housing the electronic circuitry. High-current pathways are typically reinforced with thick copper traces or additional busbars to handle the specified amperage, ranging from 15A to 500A. Models specified as including a fan feature an integrated cooling fan assembly, often paired with an aluminium heatsink attached to the power MOSFETs. This active cooling solution is designed to dissipate heat generated during high-current operation, which is crucial for maintaining performance and reliability under sustained load in applications like high-power inverters or electric vehicle conversions.

Size and Practical Fit

The board conforms to a standard PCB form factor common for BMS units, though exact length, width, and height dimensions are not detailed in the source material. When selecting a model, it is important to consider the physical space available in your battery enclosure or project box, noting that models with an attached cooling fan will have a larger overall footprint due to the fan assembly. The wiring terminals for the battery cells (B-, B1, B2, B3, B+) and the load output (P-, P+) are clearly marked on the board for straightforward installation.

Uses and Placement

This protection board is versatile, suiting any project where a reliable, protected 12V power source from a LiFePO4 battery is required. Its design makes it applicable across hobbyist, professional, and domestic settings.

Event or Professional Use

For professional, commercial, or critical applications such as portable power stations for event lighting and sound, telecommunications backup systems, or medical equipment power supplies, the correct specification of this BMS is vital. Choosing a model with a current rating significantly above the expected peak load (e.g., a 100A board for a 70A system) provides a safety margin. For installations expecting continuous high draw or operating in warm environments, opting for a fan-cooled version (available for 80A and higher models) is a practical consideration to ensure stable operation and component longevity.

Everyday Home Use

In residential settings, these boards are commonly used in DIY solar battery storage systems for sheds, garages, or off-grid cabins, in caravan and motorhome leisure battery setups, and for powering custom 12V applications around the home and garden. The lower-current models (15A, 20A, 30A) are well-suited for smaller-scale projects like security system batteries, fishing kayak trolling motors, or backup lighting, where space and power demands are more modest.

Benefits and Buying Value

The value of this product lies in its targeted functionality, range of options, and the protective role it plays in a battery system.

Reuse and Low Maintenance

By integrating cell balancing, the board actively works to keep the individual cells within a multi-cell pack at a similar state of charge. This can help reduce the rate of capacity fade over many charge-discharge cycles, potentially extending the useful service life of the entire battery pack. The solid-state design, particularly on models without moving fan parts, requires no regular maintenance, offering a set-and-forget protection solution once correctly installed and configured.

Why Choose This Product

The key decision factors when selecting this Dali protection board are the required continuous discharge current of your application and the thermal management needs. The wide spectrum from 15A to 500A covers everything from small electronics to very high-power demands. The availability of fan-cooled versions for the higher amperage models addresses a common limitation of passive BMS units under heavy load, providing a directly applicable solution for users whose projects push power boundaries. The explicit support for LiFePO4 chemistry ensures compatibility and appropriate protection voltage thresholds for this specific battery type.
