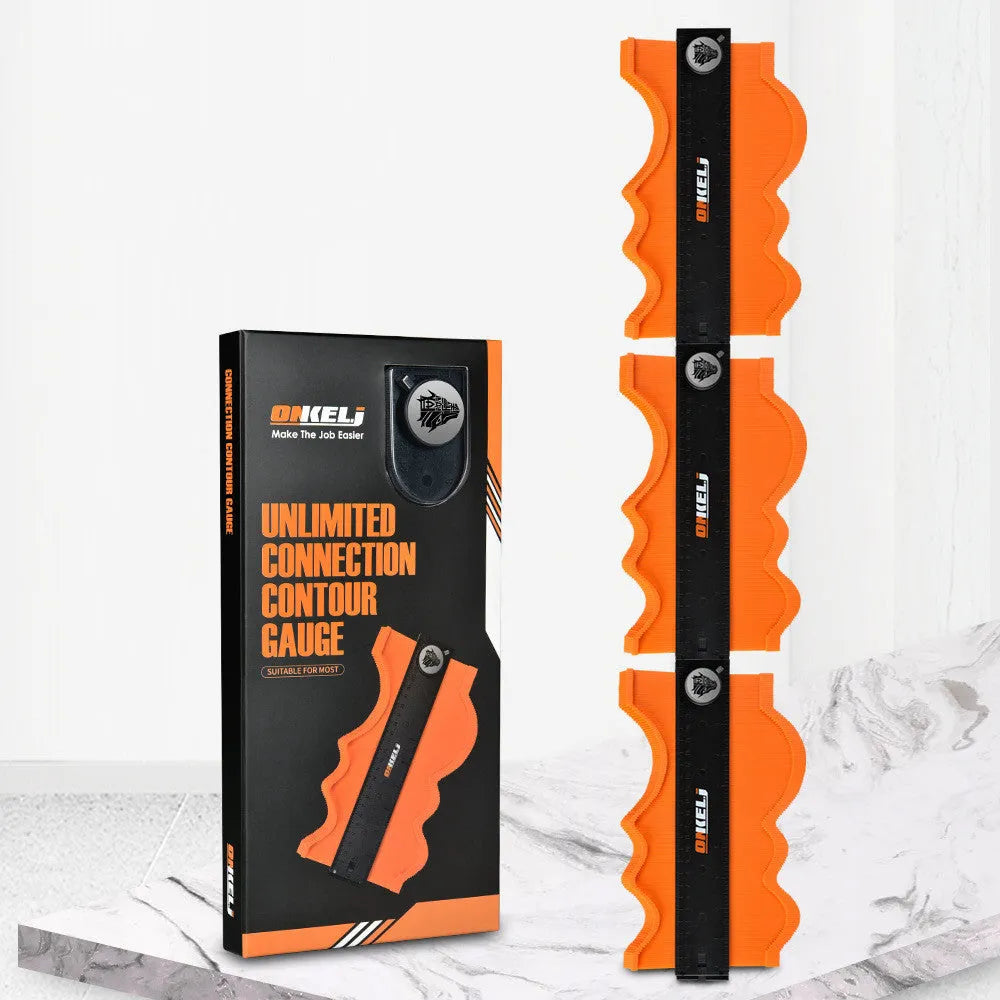

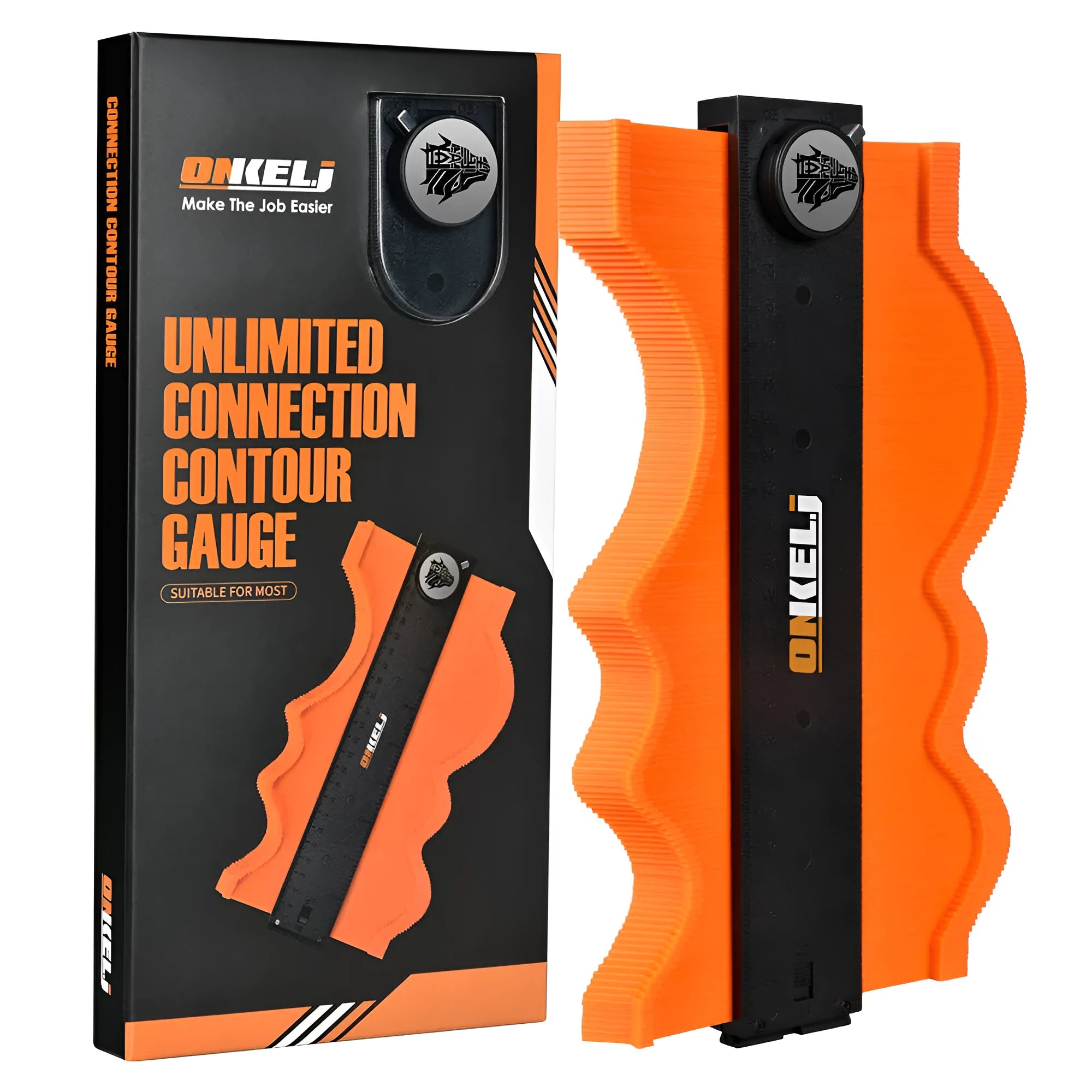

10-inch contour gauge with infinite stitching and lock belt for accurate profile transfer

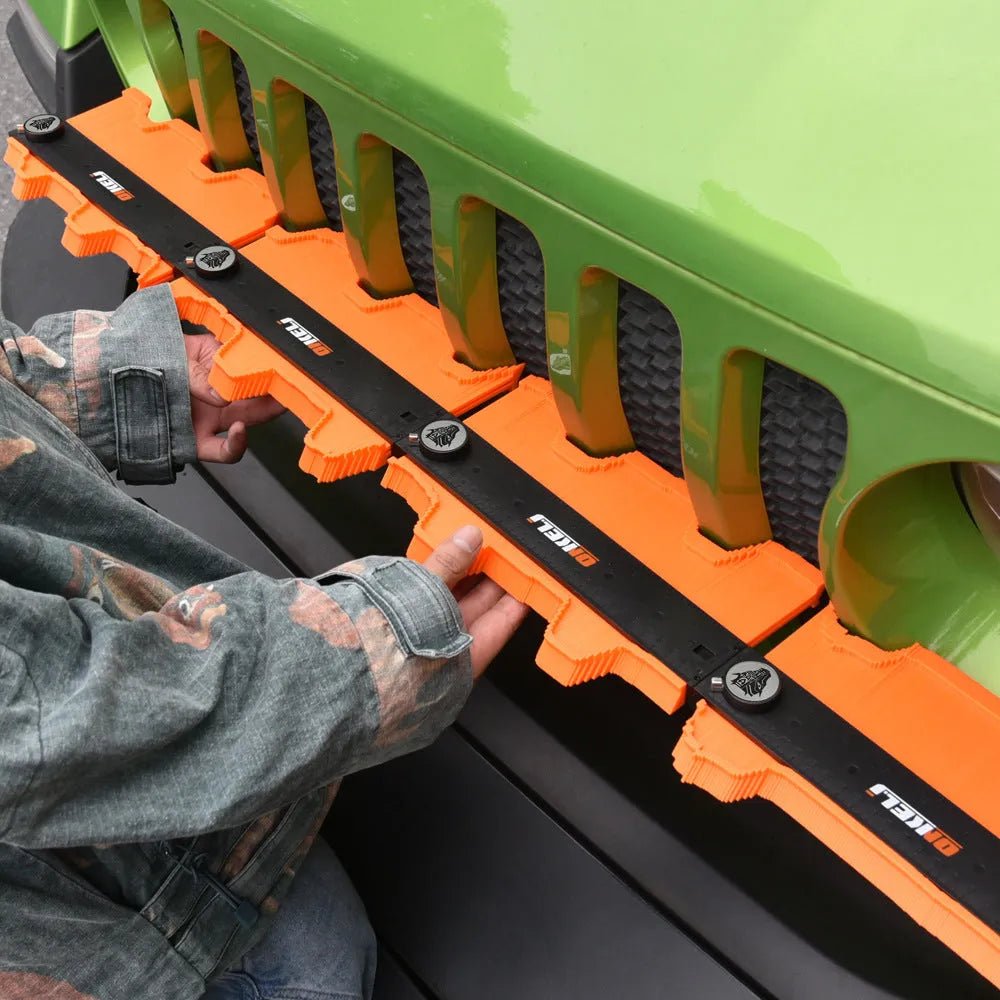

This professional contour profiling tool addresses the specific challenge of transferring irregular shapes and complex curves between materials in woodworking, tiling, and fabrication applications. The infinite stitching capability distinguishes it from standard contour gauges by allowing continuous measurement of longer profiles without resetting. With 1mm accuracy and secure lock belt positioning, this tool provides a practical solution for projects requiring exact shape matching where traditional measuring tools prove inadequate.

Features and Construction

The contour gauge combines practical engineering with measured precision, featuring specific design elements that support accurate profile transfer in workshop and site applications. The construction balances durability with measurement functionality through material selection and mechanical design.

Material and Build

Constructed from ABS plastic and stainless steel, the gauge employs materials selected for their dimensional stability and resistance to deformation under normal workshop conditions. The ABS plastic components form the housing and structural framework, while stainless steel elements comprise the measuring pins and lock belt mechanism. This material combination supports the 1mm accuracy specification by maintaining consistent dimensions during use.

Size and Practical Fit

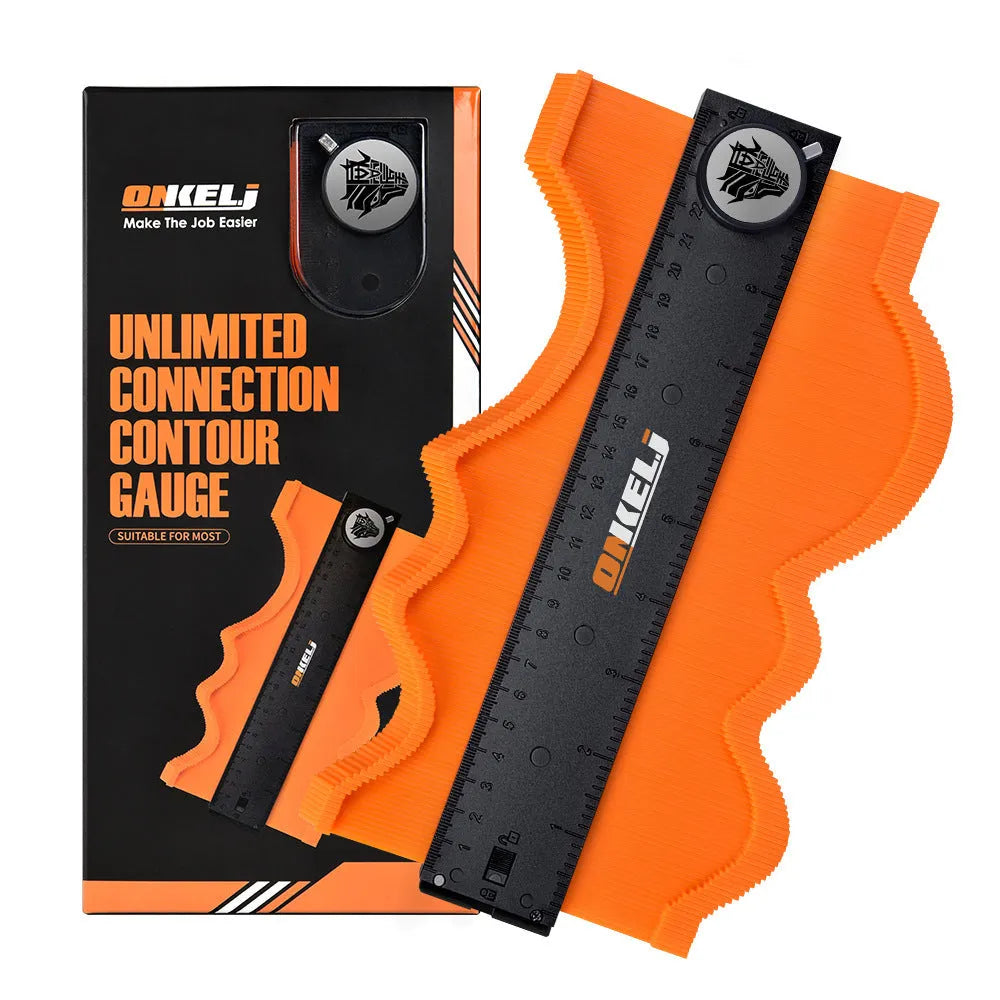

Measuring 265mm in length, 130mm in width, and 27mm in thickness, this 10-inch tool provides substantial measurement capacity within manageable physical dimensions. The size accommodates both complex contours and straightforward applications, fitting comfortably in toolboxes while offering sufficient measurement range for common workshop tasks. The radian ruler design specifically addresses curved and angled profile capture.

Uses and Placement

The contour gauge serves distinct applications across different working environments, from professional workshops to home improvement projects. Its functionality adapts to various materials and measurement requirements through specific design features.

Event or Professional Use

In professional woodworking and cabinetry installations, the infinite stitching capability proves valuable for transferring complex joint profiles and irregular edges between workpieces. The lock belt mechanism ensures captured contours remain secure during marking and cutting operations, maintaining accuracy throughout the workflow. Tile installation professionals benefit from the tool's ability to transfer wall and floor contours for precise cutting.

Everyday Home Use

For home improvement projects, this gauge facilitates accurate trim work where baseboards, crown molding, or skirting boards meet irregular surfaces. DIY installations of laminate flooring benefit from the profile transfer capability at door frames and transitions. The 1mm accuracy supports projects where close fitting matters without requiring professional measurement expertise.

Benefits and Buying Value

This contour gauge provides measurable advantages through specific design features that address common measurement challenges. The value proposition centers on practical functionality rather than general claims of quality or performance.

Reuse and Low Maintenance

The ABS and stainless steel construction supports repeated use without degradation of measurement accuracy. The lock belt mechanism maintains reliability through multiple engagement cycles, while the material selection minimizes maintenance requirements beyond basic cleaning. This durability makes the tool suitable for workshop environments where tools experience regular use.

Why Choose This Product

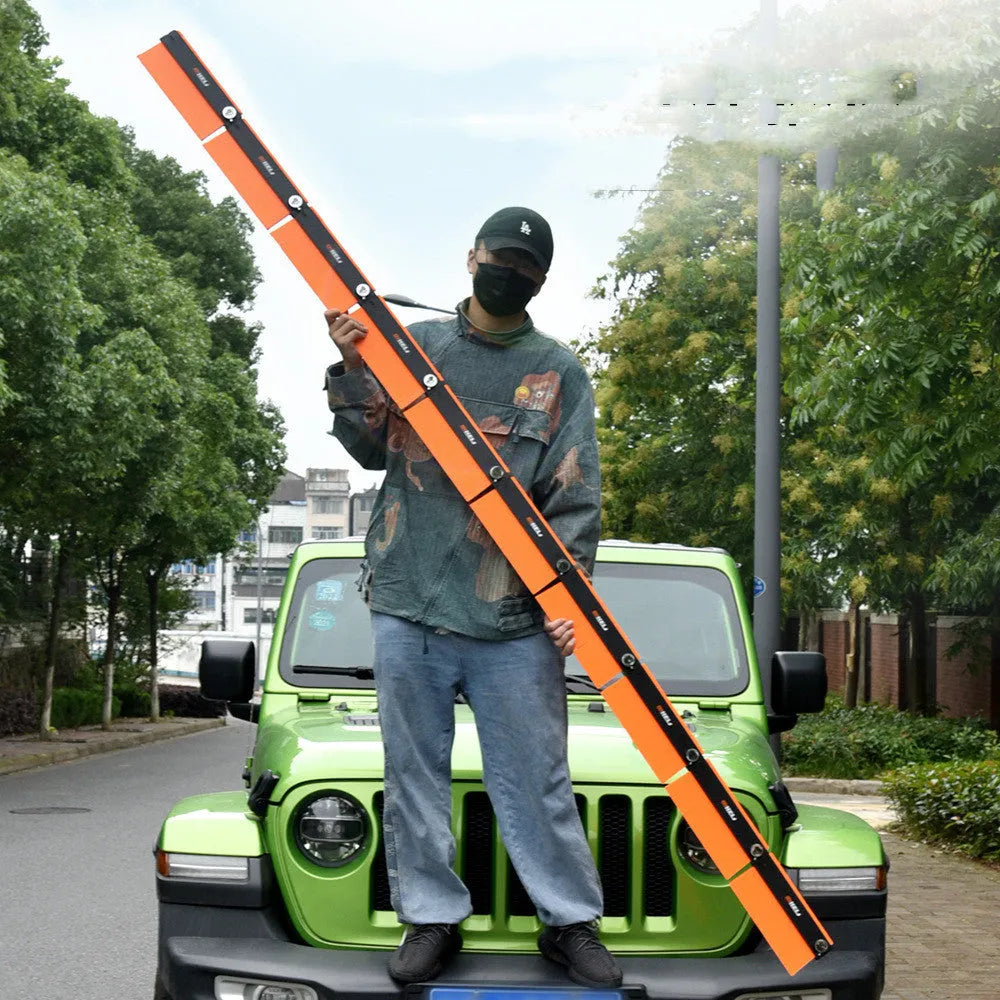

The infinite stitching capability distinguishes this gauge from standard contour tools by eliminating the reset requirement during longer profile capture. The 1mm accuracy specification provides a measurable performance standard for precision-dependent applications. The combination of lock belt security and radian ruler design addresses both straight and curved profile transfer needs within a single tool.
